Reasons to Buy

• 24 Ports 10G/multi-Gigabit for downlink
• 4 Ports 10/25G SFP28 for uplink
• 6kV surge protection on 10G Ethernet ports
• Physical stack of up to 9 units via four 25G ports
• 200 Gbps per-device physical stacking bandwidth
• Ethernet Ring Protection Switching (ERPS)
• RIP/RIPng, OSPFv2/v3, VRRP for L3 routing
• IEEE 802.1ag for Connectivity Fault Management
• Green features for reduced power consumption
• Manage through the Nuclias Network Controller

Technical Headlines

• Managed L3 Web-based management
• Quality of Service (QoS) support Configuring Location Settings (CLI)
• Basic switching RJ-45 Ethernet ports quantity: 24
• 10G support
• MAC address table: 32000 entries Switching capacity: 680 Gbit/s
• Access Control List (ACL)
• Rack mounting Stackable
• AC Power supply included

Versatile Traffic Management
Optimizes critical services with QoS, traffic shaping, multicast support, and ISM VLAN for enhanced efficiency

Simplified Management
The SIM feature enables managing multiple switches as a virtual stack with a single IP, supporting diverse management tools

Boosted Network Reliability
AC or DC RPS options ensure uninterrupted operation and boost switch reliability by preventing power disruptions

Advanced Security for Access
Supports authentication mechanisms such as 802.1X, Web/MAC-based access control for the easy deployment

High Availability and Scalability
Stack up to 9 switches with 200 Gbps bandwidth and unified IP for simplified control, fast failover and solid redundancy

Efficient Layer 3 Routing
Enables Layer 3 routing between different parts of your network, improving efficiency by directing traffic to its optimal destination

High-Speed Versatile Switching
Featuring 24×10G multi-Gigabit ports + 4×10/25G SFP28 uplinks, this switch delivers flexible, high-performance connectivity. The 100M-10G auto-sensing ports optimize speed while 25G-capable uplinks handle heavy traffic.

Perfect as a core switch for SMBs, enterprise aggregation, or Metro Ethernet edge, it combines rich software features with robust security for diverse deployments.

Unified the Power, Stack for Success

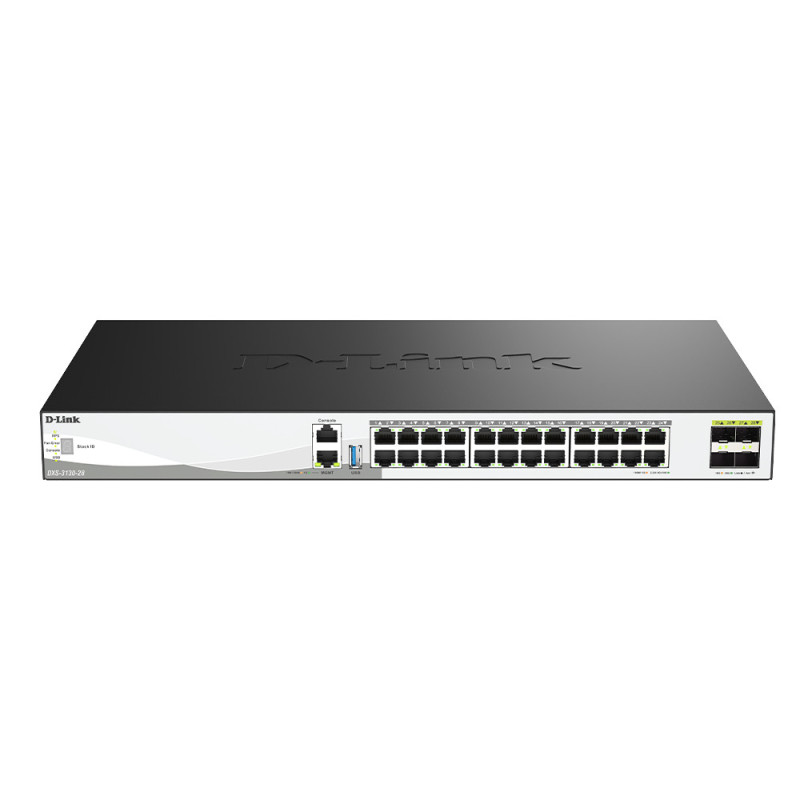

Scale your network with the DXS-3130-28 by stacking up to 9 switches into a single physical or virtual unit. This simplifies management, improves redundancy, and allows control of the entire stack through one IP address. With up to 200 Gbps, physical stacking boosts capacity to meet growing network demands.

Built for Unbreakable Networks
The DXS-3130-28 ensures continuous uptime with redundant power and stacking. It's 50ms ERPS recovery minimizes downtime, loop back detection blocks storm-affected ports, and VRRP provides seamless backup routing making it ideal for hospitals, factories, and other mission-critical networks.

Optimized Performance for Critical Services
The DXS-3130-28 switch prioritizes mission-critical traffic like VoIP and IPTV through advanced QoS/CoS, traffic shaping, and L2 Multicast (IGMP/MLD Snooping). ISM VLAN further enhances bandwidth efficiency and security for multicast streaming.

- Advanced QoS/CoS
Prioritizes critical traffic like VoIP and video, ensuring smooth performance and minimal latency for time-sensitive applications

- IGMP/MLD Snooping
Multicast traffic streams only to intended recipients, reducing unnecessary bandwidth usage and enhancing network efficiency

- ISM VLAN
Controls multicast across VLANs to reduce traffic and enhance security and performance on the large-scale network
