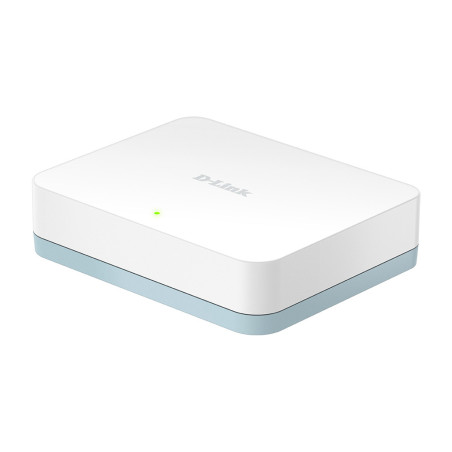

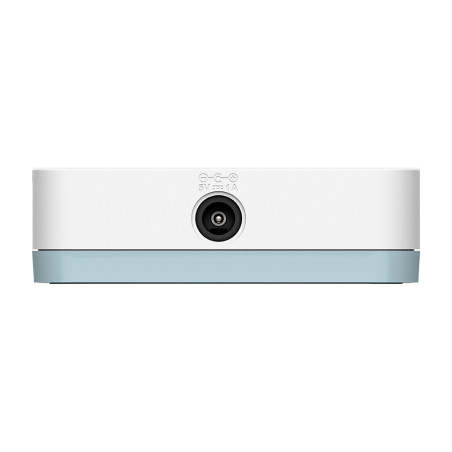

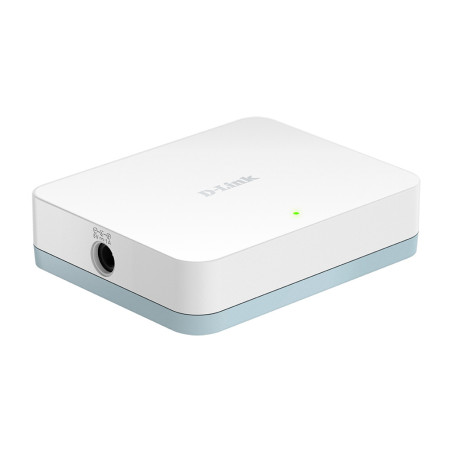

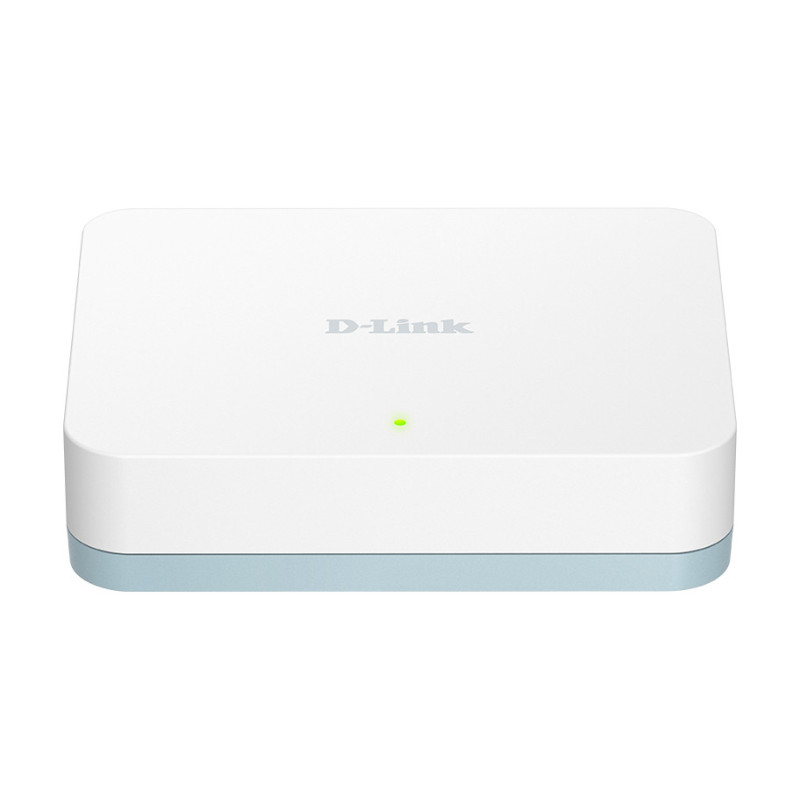

-Link D-Link 5-Port Gigabit Unmanaged Desktop Switch
  • -Link D-Link 5-Port Gigabit Unmanaged Desktop Switch
  • -Link D-Link 5-Port Gigabit Unmanaged Desktop Switch
  • -Link D-Link 5-Port Gigabit Unmanaged Desktop Switch
  • -Link D-Link 5-Port Gigabit Unmanaged Desktop Switch
  • -Link D-Link 5-Port Gigabit Unmanaged Desktop Switch
  • -Link D-Link 5-Port Gigabit Unmanaged Desktop Switch
Reasons to Buy
  • Connectivity

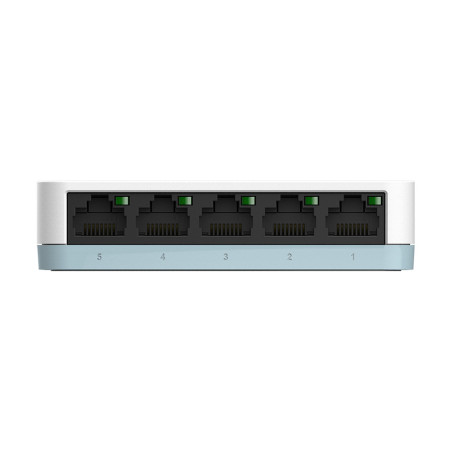

  • Five Gigabit Ethernet LAN ports for high-speed wired connections
  • Cable Diagnostics Function notifies users of cable conditions through product LEDs Green Ethernet
  • Features
  • Reduces power to a port when no link is detected
  • Adjust power to a port by detecting the length of the connected Ethernet cable


Technical Headlines
  • Unmanaged L2
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 1000BASE-T, 100BASE-TX, 10BASE-T
  • MAC address table: 8000 entries Switching capacity: 10 Gbit/s
  • AC Power supply included


The DGS-1005D 5-Port Gigabit Desktop Switch is part of D-Link’s series of SOHO devices that allows you to easily expand and upgrade your network. D-Link’s Green Technology provides energy savings, reduces heat, and a longer product life without sacrificing performance or functionality. DGS-1005D provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. An energy-efficient power adapter (EnergyStar Level V qualified), minimised use of harmful substances (RoHS compliant), and recyclable packaging make this switch truly environmentally friendly.
Fast and Reliable Networking
The D-Link DGS-1005D 5-Port Gigabit Desktop Switch creates a blazing fast network for your office, as its Gigabit Ethernet ports provide high-speed wired connections for up to five PCs or other devices. The DGS-1005D also features QoS, which prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. It’s stylish, easy-to-use, and comes IPv6-ready for a reliable network today and tomorrow.
Conserve Energy
The 5-Port Gigabit Desktop Switch helps you conserve energy automatically through several methods. It automatically powers down ports that have no link, allowing the switch to save a substantial amount of power by cutting power usage for unused ports or ports connected to computers that have been shut down.
10G support No
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Connectivity technology Wired
Copper ethernet cabling technology 1000BASE-T, 100BASE-TX, 10BASE-T
Data link protocols Ethernet, Fast Ethernet, Gigabit Ethernet
Data transfer rate 1000 Mbit/s
Dimensions (WxDxH) 142 x 107 x 30 mm
Electromagnetic emissions CE Mark, FCC Class B
Full duplex Yes
Housing material Plastic
I/O ports 5x 10/100/1000BASE-T
LED indicators Power
MAC address table 8000 entries
Maximum data transfer rate 1 Gbit/s
Networking standards IEEE 802.3
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Package height 82 mm
Package weight 222 g
Package width 100 mm
Packet buffer memory 0.112 MB
Power consumption (typical) 4.5 W
Power over Ethernet (PoE) No
Power source AC
Quality of Service (QoS) support Yes
Rack mounting No
Safety CSA
Source data-sheet Icecat.biz
Stackable No
Storage temperature (T-T) -10 - 70 °C
Switch layer L2
Switch type Unmanaged
Switching capacity 10 Gbit/s
Web-based management No
Weight 80 g
Cloud-managed No
Shipping (inner) case net weight 3.28 kg
Shipping (inner) case gross weight 4.91 kg
Pallet gross weight (air) 411.6 kg
Pallet height (air) 2.02 m mm
Pallet gross weight (sea) 411.6 kg
Pallet height (sea) 2.02 m mm
Harmonized System (HS) code 85176990
Products per shipping (inner) case 20 pc(s)
Master (outer) cases per pallet (air) 80 pc(s)
Products per pallet (air) 1600 pc(s)
Pallet gross length 110 cm mm
Pallet gross width 120 cm mm
Master (outer) cases per pallet (sea) 80 pc(s)
Products per pallet (sea) 1600 pc(s)

Specific References

EAN13
0790069252679

DGS-1005DB.pdf

D-Link D-Link 5-Port Gigabit Unmanaged Desktop Switch Data Sheet

D-Link D-Link 5-Port Gigabit Unmanaged Desktop Switch

D-Link 5-Port Gigabit Unmanaged Desktop Switch, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex
In Stock
£19.54
£16.28 Ex. VAT
Reference: DGS-1005D/B
