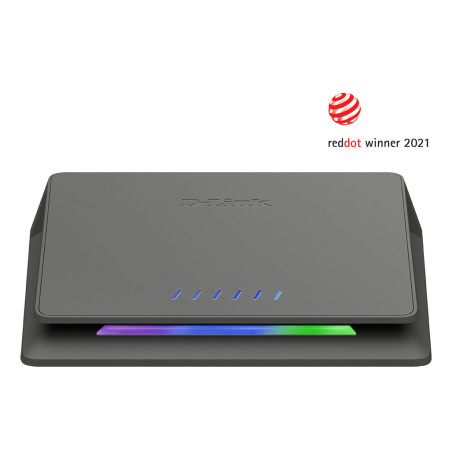

-Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
  • -Link D-Link 6-port Multi-Gigabit Unmanaged Switch
Reasons to Buy
  • Turbo mode for ultra low latency and QoS
  • x1 10 Gigabit Ethernet port
  • x5 2.5 Gigabit Ethernet ports
  • Plug and play
  • Multicoloured LED
  • Aluminium housing and silent operation


Technical Headlines
  • Unmanaged
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 6
  • 10G support 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 4000 entries Switching capacity: 45 Gbit/s


Enjoy reliable 10 Gigabit wired Ethernet.
Enjoy an ultra-fast 10-Gigabit uplink, five 2.5-Gigabit ports, Turbo Mode for port-based QoS prioritisation and multicoloured LED lighting, allowing you to eliminate network bottlenecks to maximise performance and throughput to your network.

Turbo Mode
Ultra-low latency and port-based QoS prioritisation for uninterrupted online gaming and 4K streaming

Plug and play
Ready to perform right out of the box with no configuration required

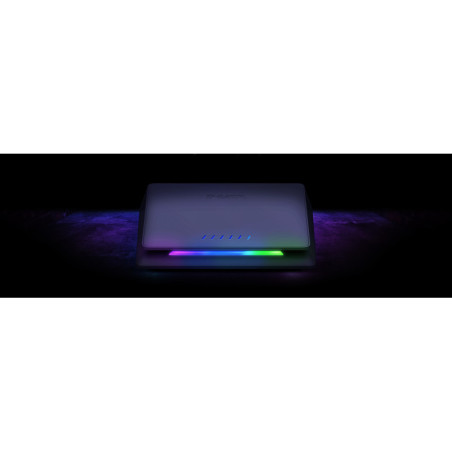

Multicoloured LED
Conveniently indicates Turbo Mode status

Silent Operation
Fanless design for a noise-free working environment that enhances reliability

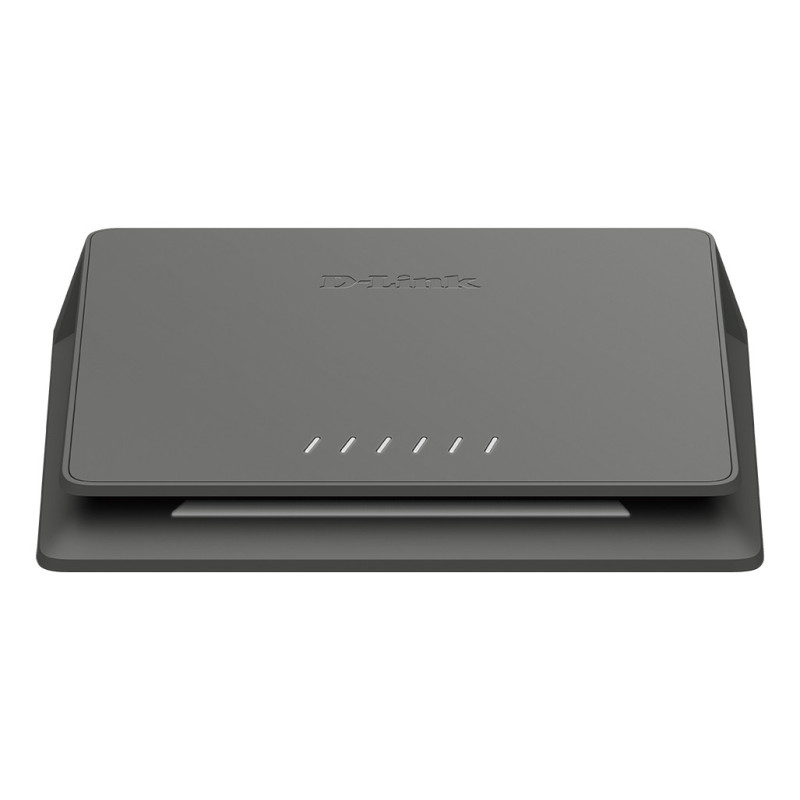

Metal Casing
Premium gunmetal grey, aluminium alloy housing

Multi-Gigabit
x1 10G and x5 2.5G Multi-Gigabit ports for high data rate speeds

Power Efficiency
Low power consumption design

QoS Magenement
Quality of Service for uninterrupted connections

Multi-Gigabit fast connectivity.

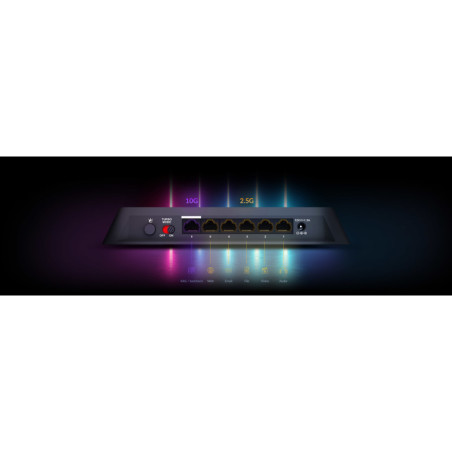

The 10-Gigabit uplink provides a high-bandwidth connection to your network core or network-attached storage (NAS) device, allowing users to access network resources and transfer large multimedia files at lightning-fast speeds. It comes with x5 2.5-Gigabit ports for maximum throughput and performance - ideal for enjoying unrestricted Wi-Fi 6 devices, high-end gaming computers and workstations.

Boost network performance with Turbo Mode.

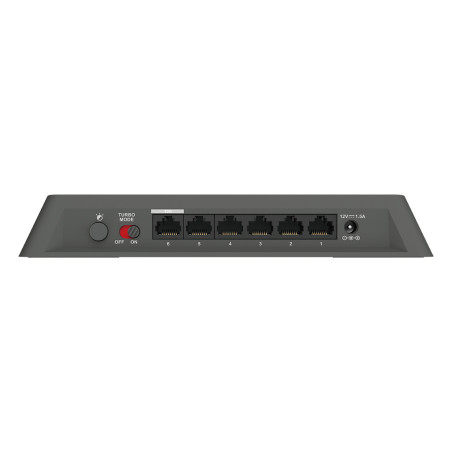

Simply press the Turbo Mode button when you're ready for port-based QoS prioritisation for ultra low latency during critical operations. Experience large multimedia file transfers and high quality video calls running at maximum network speeds every time.

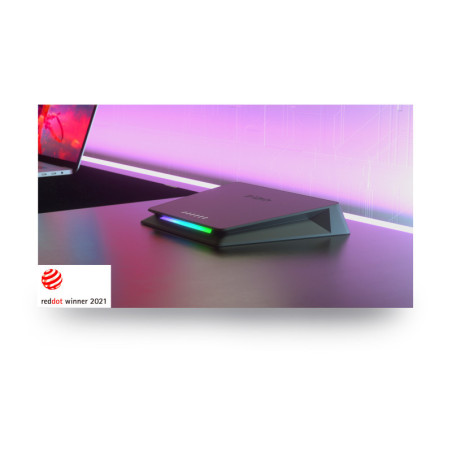

Designed for advanced home and office-grade networks.
With x1 10G port and x5 2.5G ports, the switch is fast and versatile enough to handle large multimedia file transfers to-and-from a storage server with ease, and it keeps your Wi-Fi 6 router and AP communications unrestricted. And the premium gunmetal aluminium housing features a fanless design for enhanced reliability, silent operations, and low power consumption.




10G support Yes
AC input voltage 100 - 240 V
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 6
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
Certification FCC, RCM, BSMI, VCCI
Copper ethernet cabling technology 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Depth 163 mm
Flow control support Yes
Heat dissipation 36.17 BTU/h
Height 33 mm
Housing material Aluminium
Input current 1.5 A
LED indicators Activity, Link, Power
MAC address table 4000 entries
Mean time between failures (MTBF) 489941 h
Networking standards IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Operating relative humidity (H-H) 10 - 95%
Operating temperature (T-T) 0 - 40 °C
Power over Ethernet (PoE) No
Quality of Service (QoS) support Yes
Rack mounting No
Source data-sheet Icecat.biz
Stackable No
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -10 - 70 °C
Store-and-forward Yes
Switch type Unmanaged
Switching capacity 45 Gbit/s
Weight 680 g
Width 217 mm
Fanless Yes
Sustainability compliance Yes
2.5G Ethernet (copper) ports quantity 5
10G Ethernet (copper) ports quantity 1
Harmonized System (HS) code 85176990
Compliance certificates CE, RoHS

Specific References

EAN13
0790069459818

DMS-106XT.pdf

D-Link D-Link 6-port Multi-Gigabit Unmanaged Switch Data Sheet

D-Link D-Link 6-port Multi-Gigabit Unmanaged Switch

D-Link 6-port Multi-Gigabit Unmanaged Switch, Unmanaged, 2.5G Ethernet (100/1000/2500)
In Stock
£214.43
£178.69 Ex. VAT
Reference: DMS-106XT
