Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 4
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 2000 entries Switching capacity: 10 Gbit/s
- DC Power over Ethernet (PoE)
Expanding Wired Connectivity for SOHO Networks
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth | 101 mm |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Heat dissipation | 304 BTU/h |
| Height | 29 mm |
| Housing material | Metal |
| Input current | 1.66 A |
| LED indicators | Activity, Link, PoE, Power |
| MAC address table | 2000 entries |
| Manual | Yes |
| Mean time between failures (MTBF) | 6710127 h |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Package height | 215 mm |
| Package weight | 1.3 kg |
| Package width | 269 mm |
| Packet buffer memory | 128 MB |
| Power consumption (typical) | 2.89 W |
| Power over Ethernet (PoE) | Yes |
| Power source | DC |
| Quality of Service (QoS) support | Yes |
| Rack mounting | No |
| Reset button | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| Weight | 410 g |
| Width | 158 mm |
| Master (outer) case width | 237 mm |
| Master (outer) case length | 469 mm |
| Master (outer) case height | 306 mm |
| Master (outer) case gross weight | 8.52 kg |
| Products per master (outer) case | 6 pc(s) |
Specific References
- EAN13
- 0606449164916

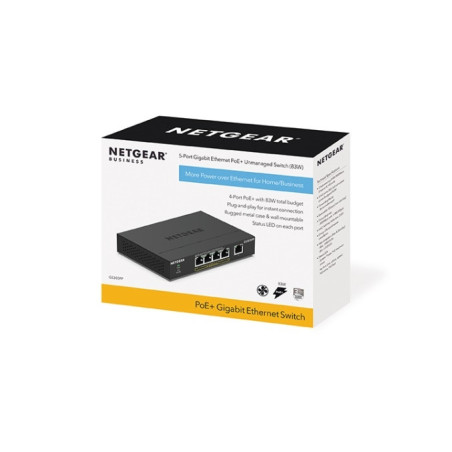

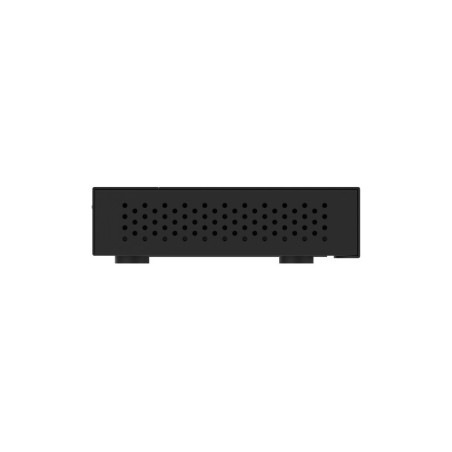

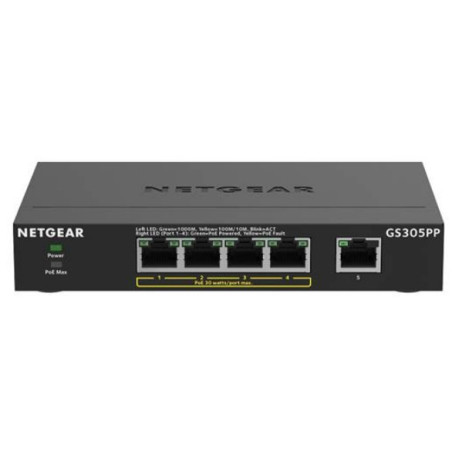

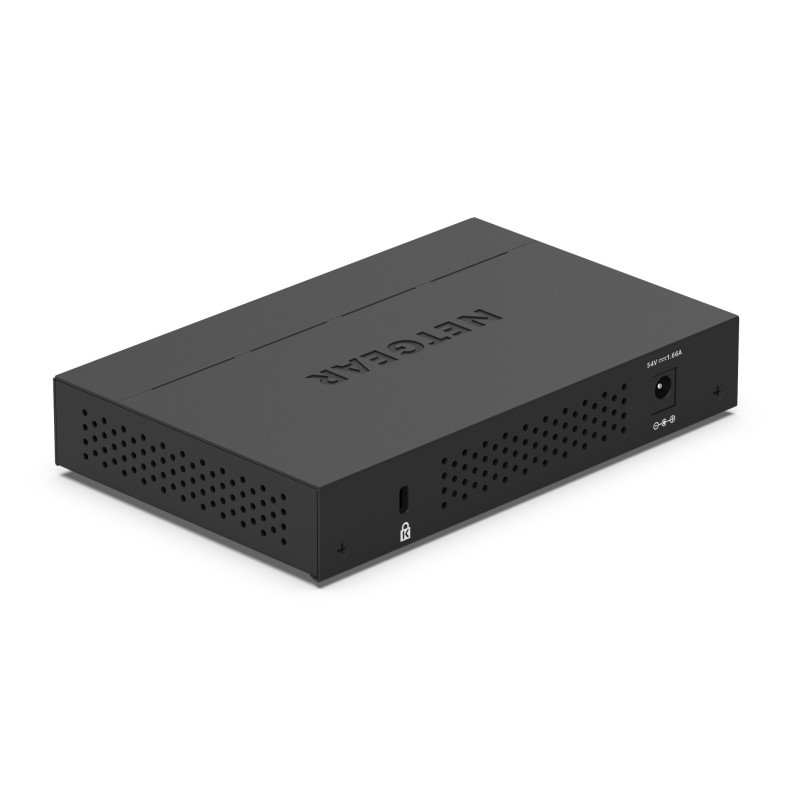

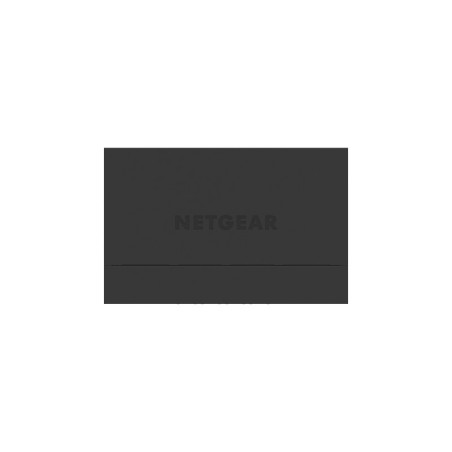

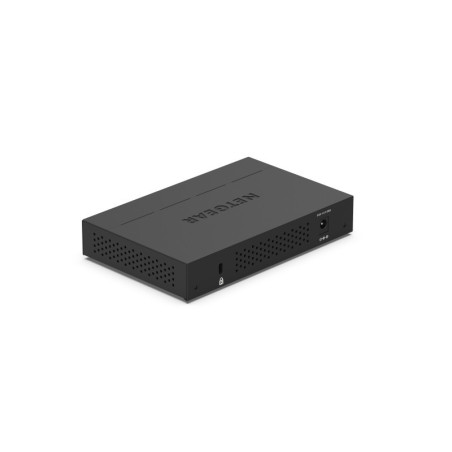

NETGEAR GS305PP
NETGEAR GS305PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
£77.49
£77.49 Ex. VAT
