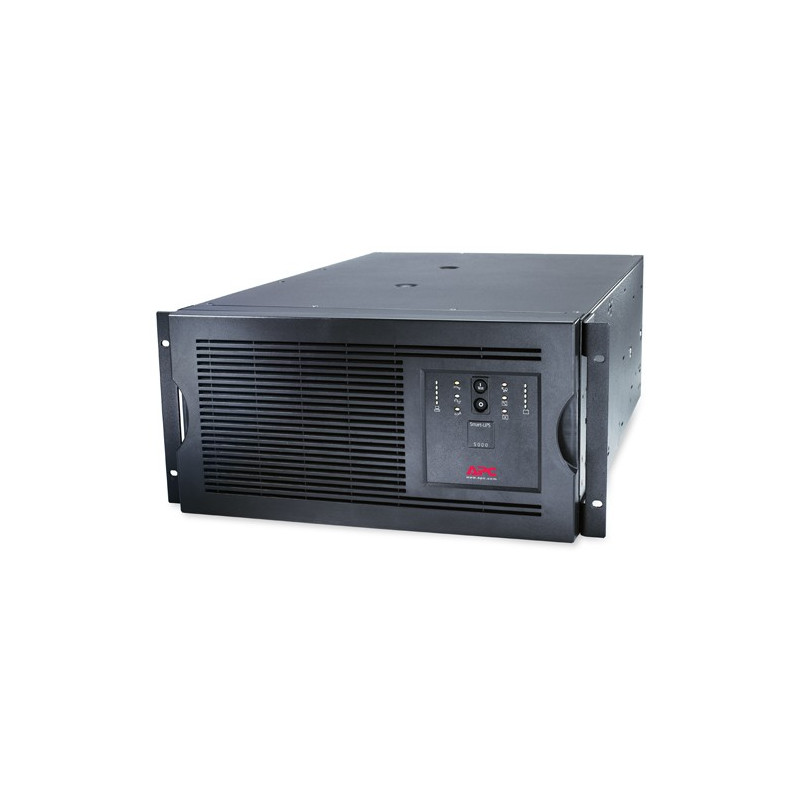

APC Smart-UPS, 4000 Watts / 5000 VA,Input 230V / Output 230V, Rack Height 5 U

Includes: CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting support rails, Smart UPS signalling RS-232 cable, User Manual, Web/SNMP Management Card

Standard Lead Time: Usually Ships within 4 Weeks

-Adjustable voltage-transfer points.

-Audible alarms.

-Automatic self-test.

-Boost and Trim Automatic Voltage Regulation (AVR).

-Cold-start capable.

-Disconnected battery notification.

-Hot-swappable batteries.

-LED status indicators.

-Network manageable.

-Plug-and-Play installation.

-Rack/Tower convertible.

-Resettable circuit breakers.

-Safety-agency approved

-Serial Connectivity.


-Temperature-compensated battery charging.
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 10 AC outlet(s)
Battery capacity 1632 VAh
Battery recharge time 3 h
Battery replacement alarms LED
Battery technology Sealed Lead Acid (VRLA)
Battery type VRLA
Cables included RS-232
Certification C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI
Colour of product Black
Depth 660 mm
Dimensions (WxDxH) 483 x 660 x 222 mm
Efficiency 96 %
Form factor Rackmount/Tower
Height 222 mm
Hot-swap battery Yes
Input connection type Hard Wire 3-wire
Input operation voltage (max) 302 V
Input operation voltage (min) 151 V
LED indicators Yes
Manual Yes
Noise level 53 dB
Nominal input voltage 230 V
Nominal output voltage 230 V
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 9000 m
Operating relative humidity (H-H) 0 - 95 %
Operating relative humidity range 0 - 95 %
Operating temperature (T-T) 0 - 40 °C
Operating temperature range (T-T) 0 - 40 °C
Output connections 8 - IEC 320 C13 2 - IEC 320 C19 6 - IEC Jmpr
Output operation voltage (max) 240 V
Output operation voltage (min) 220 V
Output power 4000 W
Output power capacity (VA) 5000 VA
Output voltage note 230-240 V
Package height 635 mm
Package weight 106820 g
Package width 610 mm
Power supply input frequency 50/60 Hz
Quantity per pallet 4 pc(s)
Quick installation guide Yes
Rack capacity 5U
Replacement battery cartridge RBC55
RoHS compliance Yes
Serial ports quantity 1
Source data-sheet
Storage relative humidity (H-H) 0 - 95 %
Storage relative humidity range 0 - 95 %
Storage temperature (T-T) -15 - 45 °C
Storage temperature range (T-T) -15 - 45 °C
Surge energy rating 480 J
Typical backup time at full load 9.4 min
Typical backup time at half load 26.7 min
Waveform Sine
Weight 97730 g
Width 483 mm
EAN 7313042553216
Manufacturer APC


£3,363.54 Inc VAT.


In Stock

Smart-UPS 5000VA 230V Rackmount/Tower More details
