Connectix Enhanced Category 5 UTP Cable is designed for high speed LANs including Gigabit Ethernet applications.
The Cca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations, exceeding the requirements of BS6701:2016+A1:2017 for installation cables.
When used with Connectix Enhanced Category 5 panels and modules it gives the exceptional performance required for transmission over all four pairs.
Features & Benefits
- Suitable for Gigabit Ethernet applications
- Supplied metre marked for easy installation
- Pure copper cores
- Excellent performance exceeding ANSI/TIA Enhanced Category 5 specifications
- Available in 100m and 305m boxes
Please Note: This cable is 100% Copper NOT Copper Coated Aluminium
| Construction | 4 twisted pairs cabled together |
| Impedance | 100 MHz +/- 15 Ω |
| Operating temperature (T-T) | -20˚C to +70˚C |
| Conforms to | IEEE 802.3: 10Base-T, 100Base-T, 1000 Base-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC |
| Fire Rating | Cca,s1.d0,a1 |
| Inner Conductor | 24 AWG plain copper |
| Insulation | High density polyethylene |
| Colour Code | Pair 1: White/Blue-Blue/White Pair 2: White/Orange-Orange/White Pair 3: White/Green-Green/White Pair 4: White/Brown-Brown/White |
| Jacket | FR-LSZH |
| Overall Diameter | 5.4 +/- 0.4 mm |
| Min. Bending Radius Installation | 44mm |
| Min. Bending Radius Installed | 22mm |
| DC Resistance | < 9.4 Ω/100 m |
| Velocity Ratio | 69% |
| Installation temperature (T-T) | 0˚C to +50˚C |

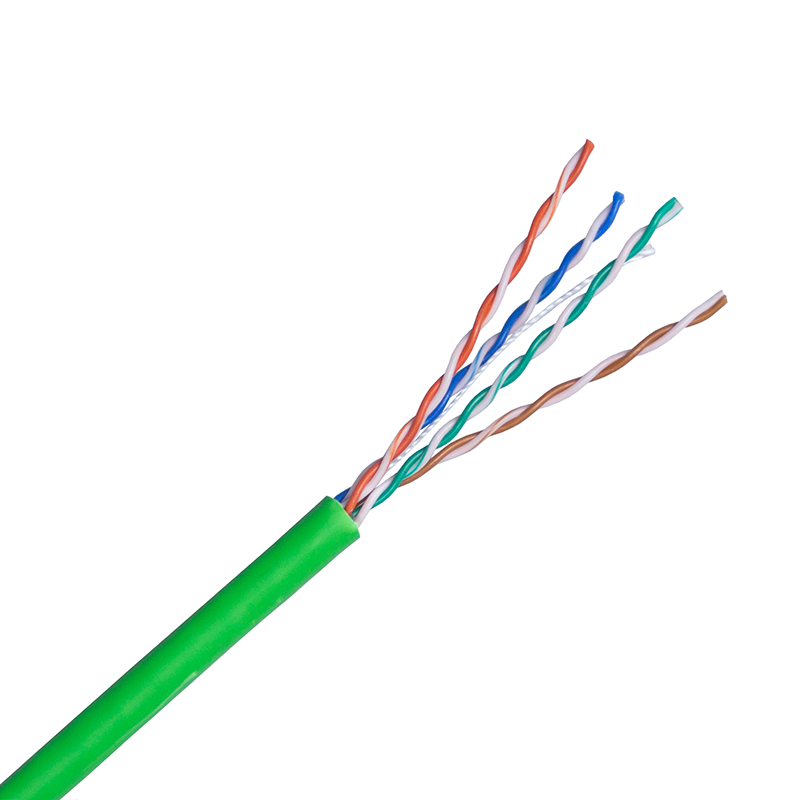

Cat 5e UTP LSZH Cca Solid Cable
Available in 100m & 305m boxes.
£47.88
£39.90 Ex. VAT
