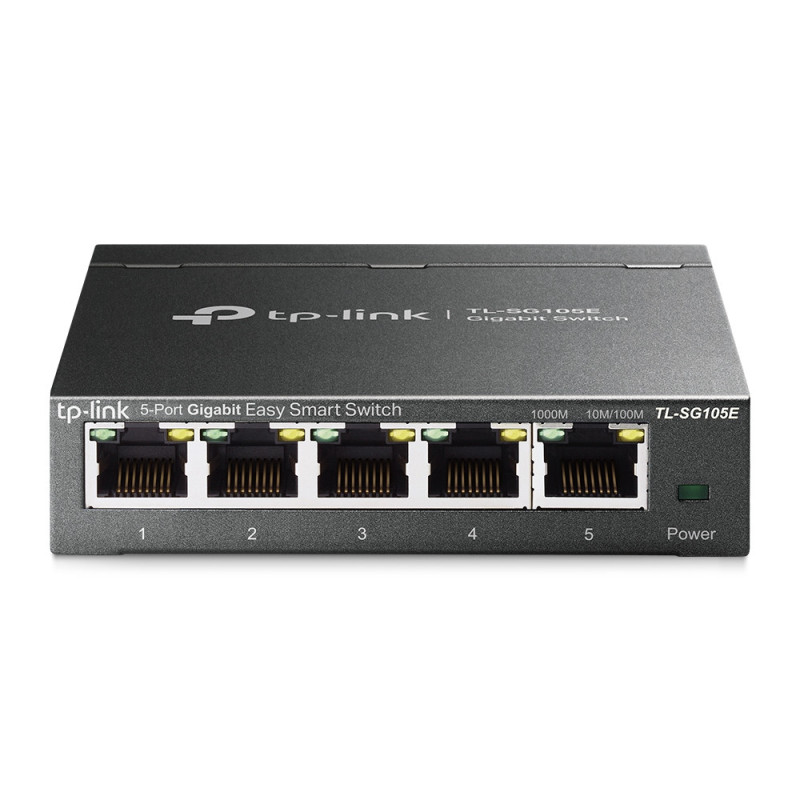

P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
  • P-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Reasons to Buy

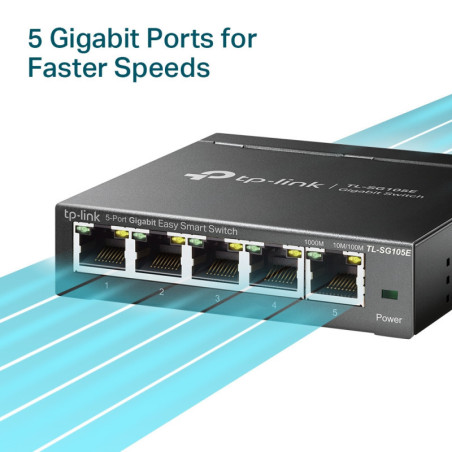

  • 5 10/100/1000Mbps RJ45 ports

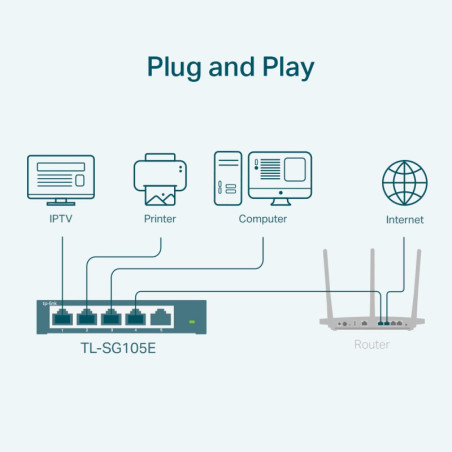

  • Plug and play, with no configuration required

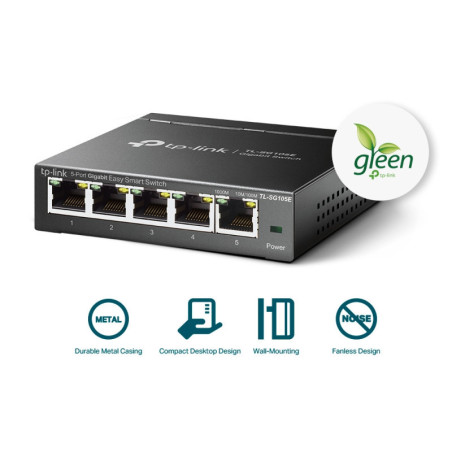

  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption


Technical Headlines
  • Managed L2 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 5
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 8192 entries
  • Power supply included


What This Product Does

The TL-SG105E 5-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG105E offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG105E can save up to 75% of power consumption, making it an eco-friendly solution for your business network.

Simple & Effective Management

TP-LINK’s Gigabit Easy Smart switch, TL-SG105E offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG105E can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG105E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG105E is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Go Green with Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG105E 5-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network’s capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105E can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
Power Budget According to Cable Length

Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG105E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.

Ease of Use

TL-SG105E is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
10G support No
AC input frequency 50 Hz
AC input voltage 220 V
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cables included AC
Certification FCC, CE, RoHS
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Depth 98 mm
Flow control support Yes
Gigabit Ethernet (copper) ports quantity 5
Heat dissipation 9.62 BTU/h
Height 25 mm
Input current 0.6 A
LED indicators Yes
MAC address table 8192 entries
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Number of VLANs 32
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) 0 - 40 °C
Packet buffer memory 1 MB
Power over Ethernet (PoE) No
Quality of Service (QoS) support Yes
Quick start guide Yes
Rack mounting No
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Store-and-forward Yes
Switch layer L2
Switch type Managed
Throughput 7.4 Mpps
User guide Yes
Web-based management Yes
Width 100 mm
Harmonized System (HS) code 85176990

Specific References

EAN13
1210002616843

TL-SG105E.pdf

TP-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black Data Sheet

TP-Link TL-SG105E network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

TP-Link TL-SG105E, Managed, L2, Gigabit Ethernet (10/100/1000)
In Stock
£30.02
£25.02 Ex. VAT
Reference: TL-SG105E
