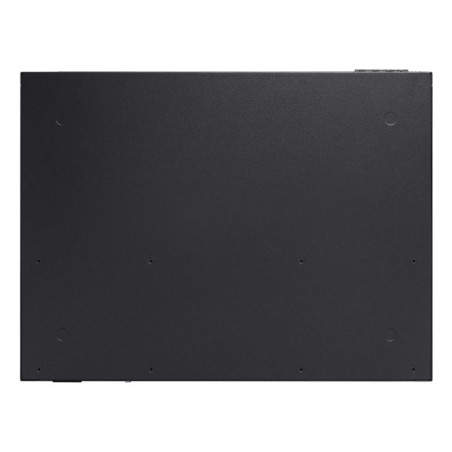

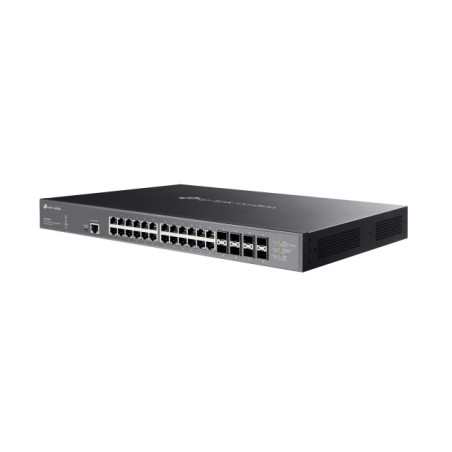

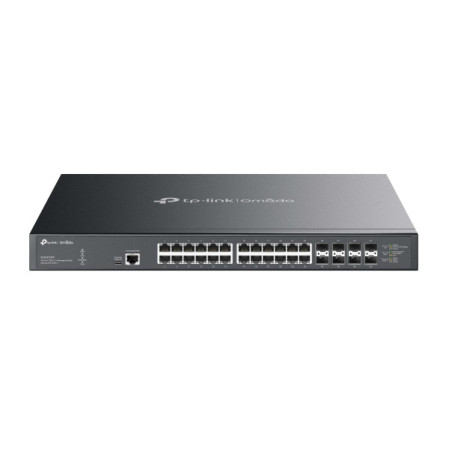

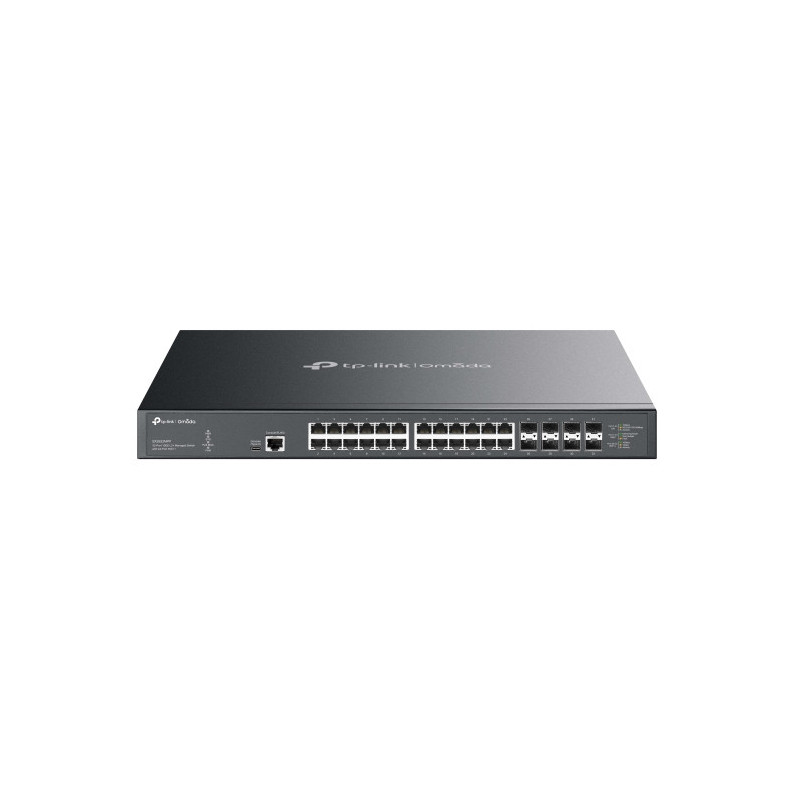

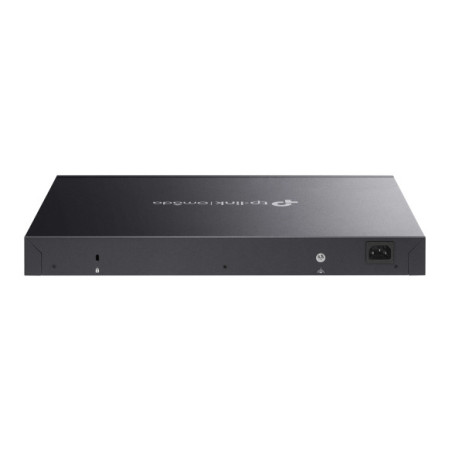

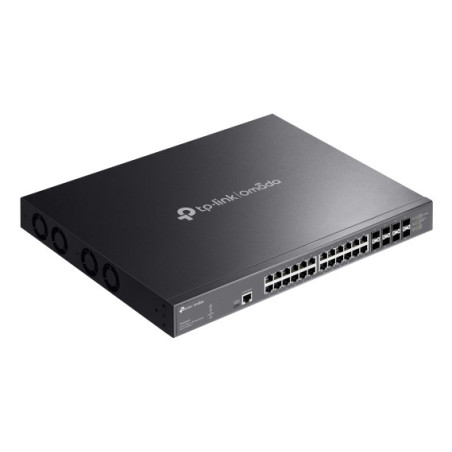

P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
  • P-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++
Reasons to Buy
  • 24× 1/2.5/5/10 Gbps RJ45 PoE++ ports
  • 8× 1/10 Gbps SFP+ slots
  • 770 W total PoE budget, up to 90 W PoE out per port**
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design


Technical Headlines
  • Managed L2+ Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/USB Type-C
  • 10G support
  • MAC address table: 32000 entries Switching capacity: 640 Gbit/s
  • Access Control List (ACL)
  • DIN rail Rack mounting Stackable
  • AC Power over Ethernet (PoE)


- Empowering the Real Wi-Fi 6 and Wi-Fi 7 with 10G PoE++ Ports
- Easily Build a Whole 10G Multi-gigabit Network

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
10G support Yes
AC input frequency 50/60 Hz
AC input voltage 110 - 240 V
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
Cables included Power
Depth 330 mm
Firmware upgradeable Yes
Form factor DIN rail
Gigabit Ethernet (copper) ports quantity 24
Heat dissipation 3444.7 BTU/h
Height 44 mm
Housing material Metal
LED indicators Yes
MAC address table 32000 entries
MIB support RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Minimum system requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Networking standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1af, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3x
Number of VLANs 4000
Operating relative humidity (H-H) 10 - 90%
Operating temperature (T-T) -5 - 45 °C
Packet buffer memory 24 MB
Power consumption (typical) 953.7 W
Power over Ethernet (PoE) Yes
Power source AC
Quality of Service (QoS) support Yes
Quick start guide Yes
Rack mounting Yes
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
Source data-sheet Icecat.biz
Spanning tree protocol Yes
Stackable Yes
Storage relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -40 - 70 °C
Switch layer L2+
Switch type Managed
Switching capacity 640 Gbit/s
Web-based management Yes
Width 440 mm
Fanless No
Cloud-managed Yes
IPv4 routes 48
IPv6 routes 48
2.5G Ethernet (copper) ports quantity 24
10G Ethernet (copper) ports quantity 24
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Power over Ethernet 4PPoE (PoE++) ports quantity 24
Unified static configuration Yes
Device link detection protocol (DLDP) Yes
Power saving mode (EEE) Yes
Sustainability organizations Accountability

Specific References

EAN13
0810142821438

SX3832MPP.pdf

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++ Data Sheet

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++

TP-Link Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++, Managed, L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, DIN rail
In Stock
£1,739.44
£1,449.53 Ex. VAT
Reference: SX3832MPP
