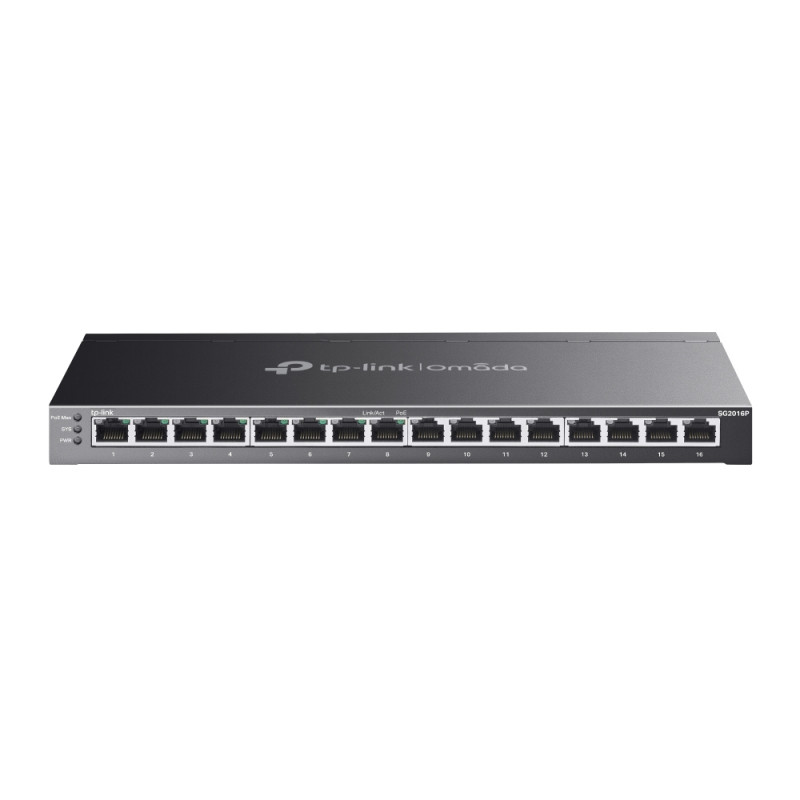

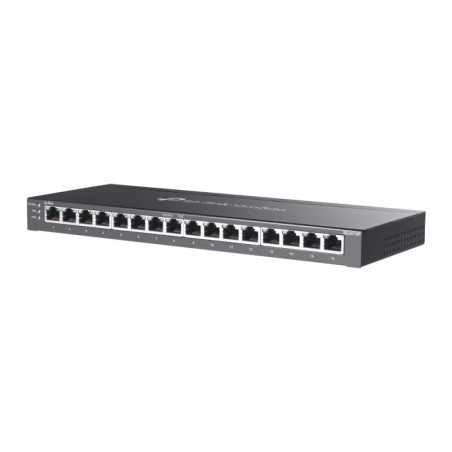

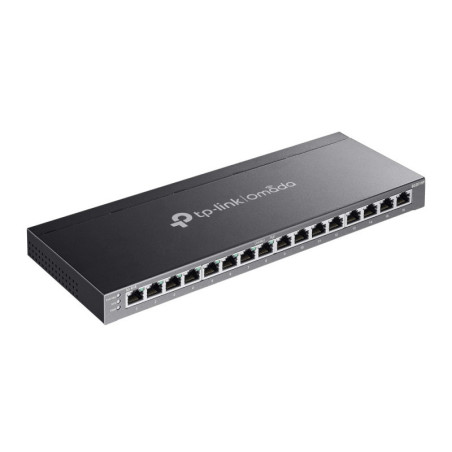

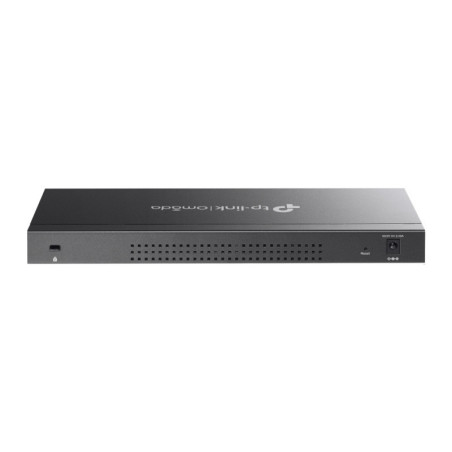

P-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • P-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • P-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • P-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • P-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • P-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
  • P-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
Reasons to Buy
  • 16× Gigabit ports (8× 802.3at/af-compliant PoE+ ports)
  • 120 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Fanless design for silent operation

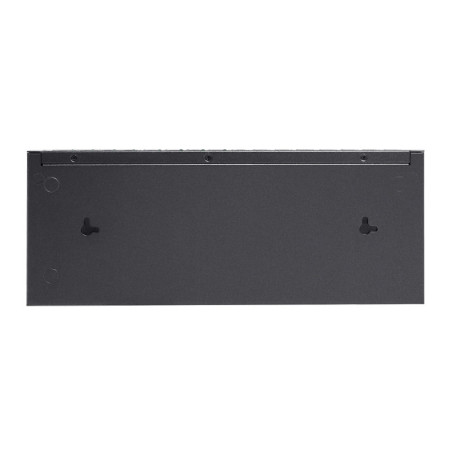

  • Durable metal casing and desktop/wall mounting design


Technical Headlines
  • Managed L2/L2+ Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 32 Gbit/s
  • Access Control List (ACL)
  • Rack mounting
  • DC/PoE Power over Ethernet (PoE)


TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
10G support No
Auto MDI/MDI-X Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Cables included AC
Certification CE, FCC, RoHS
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Depth 111.7 mm
Height 990mm
LED indicators PoE, Power, System
MAC address table 96000 entries
MIB support RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Networking standards IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
Number of VLANs 8000
Operating temperature (T-T) 8 - 35 °C
Power source PoE, DC, AC
Security algorithms WPS,WPS-PBC,WPA,WPS-PIN,WPA2
Storage temperature (T-T) 8 - 85 °C
Supported network protocols WEP, WPA/WPA2-PSK
Switch layer L7
Switching capacity 993.6 Gbps
Width 993 mm
MAC address entries Dynamic MAC address entries, Static MAC address entries

Specific References

EAN13
4897098689493

sg2016p.pdf

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+ Data Sheet

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
In Stock
£176.03
£146.69 Ex. VAT
Reference: sg2016p
