Reasons to Buy

• Up to 200 m PoE Distance: Standard PoE Passthrough to doubles PoE source-to-device transmission distance from 100 m (328 ft) to 200 m (656 ft) without losing gigabit speeds, perfect for long-range surveillance cameras and access points.*
• 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.**
• Outdoor Weatherproof: IP55 waterproof, dustproof, and UV-resistant enclosure. Operation temperatures of -40 to 60 °C and 4KV lightning protection further ensure stable operation against harsh outdoor conditions
• Easy Installation: Easy to mount to a wall or pole with the provided mounting kits to flexibly fit your needs
• Centralized Cloud Management: Integrates into Omada SDN for cloud access, remote management, and multi-site management
• Value-Added Features Foster Touchpoint Experiences: Static Routing, Access Control List (ACL), QoS, and VLAN

Technical Headlines

• Managed L2/L2+ Web-based management
• Quality of Service (QoS) support
• Basic switching RJ-45 Ethernet ports quantity: 4
• Cat5, Cat5e 10G support 10BASE-T, 100BASE-TX, 100BASE-T
• MAC address table: 8000 entries Switching capacity: 10 Gbit/s
• Access Control List (ACL)
• Desktop
• DC/PoE Power supply included Power over Ethernet (PoE)

PoE-Powered PoE Switch for
Simplified Outdoor Network Deployment

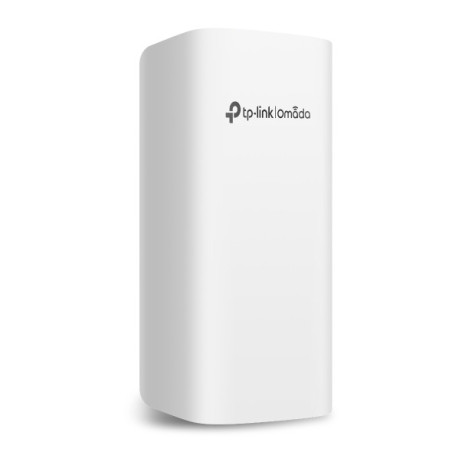

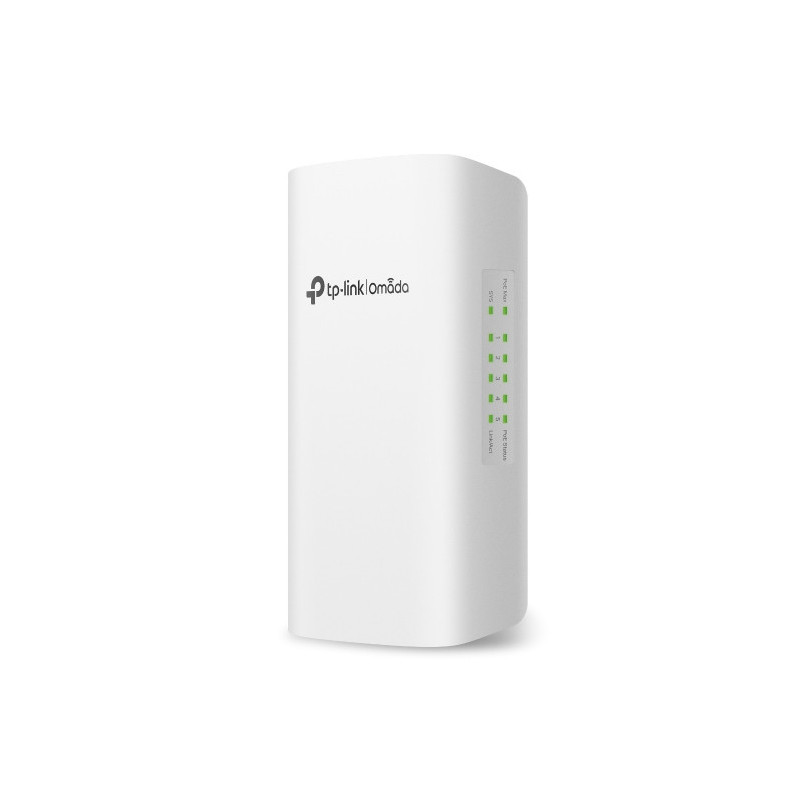

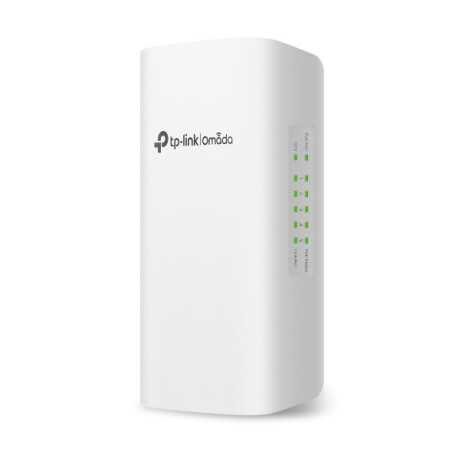

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out

Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.

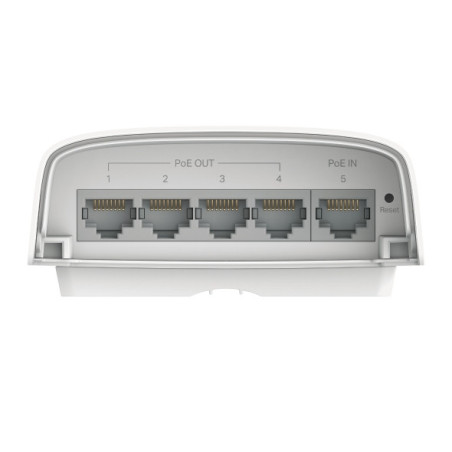

One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.

Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.

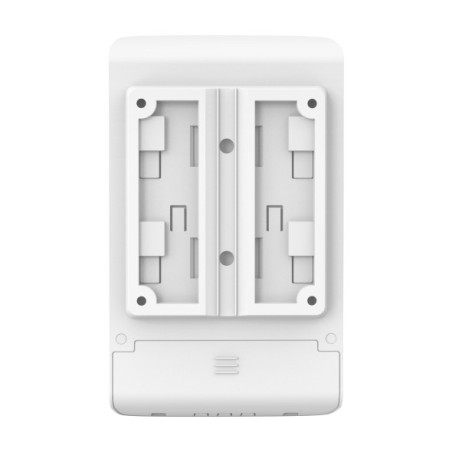

Easy Installation to Flexibly Fit Your Needs
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.

Value-Added Features Foster Touchpoint Experiences

Static Routing
Helps route internal traffic for more efficient use of network resources.

Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experiences
Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.

VLAN for Security and Flexible Management
VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.

Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
