ST2000PEXPSE network card & adapter
  • ST2000PEXPSE network card & adapter
  • ST2000PEXPSE network card & adapter
  • ST2000PEXPSE network card & adapter
  • ST2000PEXPSE network card & adapter
Images are for illustrative purposes only.
  • More info

  • Details

  • Spec Sheet

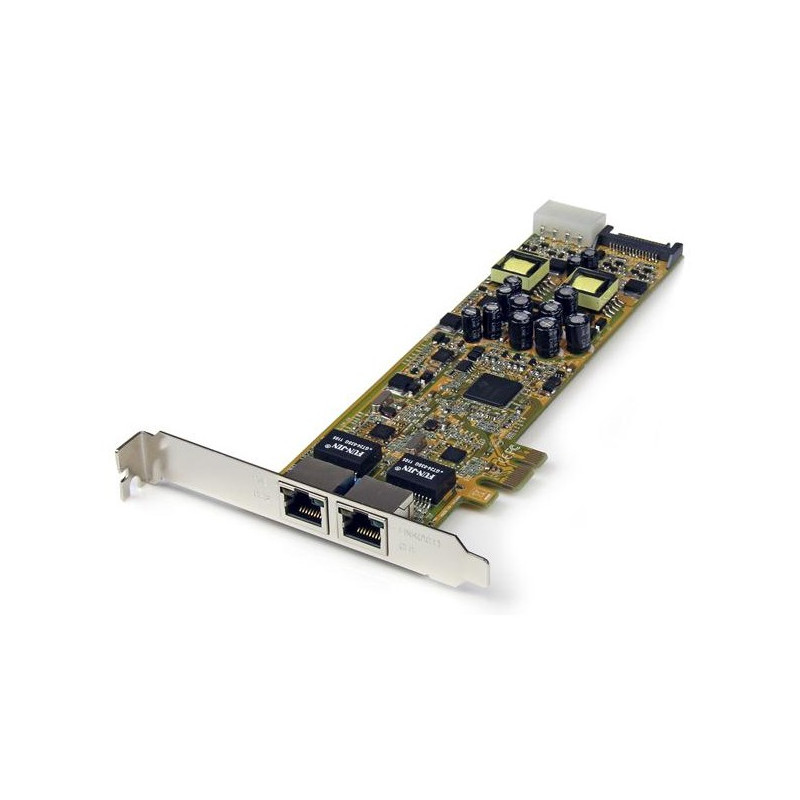

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.

This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.

Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).

The ST2000PEXPSE PoE NIC is backed by a 2-year warranty and free lifetime technical support.

The Advantage

- Reduces cable clutter and makes it easier to install devices in remote locations that are powered by the the PSE network card, with up to 25.5W of power delivery as well as a solid network link over a single cable connection

- Suitable for installation in full profile or small form factor computer cases using the included half-height/low profile bracket, adding two network connection ports using a single PCI Express slot

- Provides versatile network connections with support for advanced features such as Jumbo Frames and VLAN tagging, as well as Wake-On-LAN and Auto MDIX
Cabling technology10/100/1000BaseT(X)
CertificationCE, FCC
Compatible operating systemsWindows 98SE/ ME/ 2000/ XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit) Linux Kernel 2.4.x+
Connectivity technologyWired
Data transfer rate (max)2000 Mbit/s
Depth195 mm
Ethernet LANYes
Ethernet LAN (RJ-45) ports2
Ethernet LAN (RJ-45) ports quantity2
Ethernet LAN connectionYes
Ethernet LAN data rates10,100,1000 Mbit/s
Ethernet LAN data transfer rates10, 100, 1000 Mbit/s
Flow control supportYes
Full duplexYes
Height68 mm
Host interfacePCI-E
LED indicatorsActivity,Link,PoE
Linux operating systems supportedYes
Networking standardsIEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 55 °C
Operating temperature range (T-T)0 - 55 °C
Output voltage48 V
Package height42 mm
Package weight245 g
Package width160 mm
RoHS complianceYes
Storage temperature (T-T)-20 - 85 °C
Storage temperature range (T-T)-20 - 85 °C
Supported data transfer rates10/100/1000
Weight106 g
Width68 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 H
