Connectix Category 6a U/FTP Cable has been designed to provide the exceptional performance required to support extremely high-speed applications, including 10-Gigabit Ethernet.
The B2ca LSZH sheath offers excellent fire performance making this the ideal choice in public buildings and other high risk locations.
The individually shielded pairs ensure maximum transmission, free from the problems of NEXT and alien crosstalk. Exceeds the requirements of BS6701:2016+A1:2017 for installation cables.
Features & Benefits:
- B2Ca Fire Rated Orange Cable
- U/FTP shielding
- Available from Stock
- Suitable for Gigabit Ethernet applications
- Supplied metre marked for easy installation
- Pure copper cores
- Excellent performance exceeding ANSI/TIA Category 6A specifications
- In line with BS6701:2016+A1:2017 specifications
- 25 Year System Warranty
- Available in 100m and 305m boxes
| Operating temperature (T-T) | -20°C up to +60 °C |
| Conforms to | IEEE 802.3: 10Base-T, 100Base-T, 1000Base-T, 10GBase-T standards; ANSI/TIA 568C; ISO/IEC 11801; RoHS2002/95/EC |
| Fire Rating | B2ca,s1a,d1,a1 |
| Insulation | Skin-foam-skin Polyethylene, Ø 1.33 mm |
| Min. Bending Radius Installation | 60mm |
| Min. Bending Radius Installed | 30mm |
| Installation temperature (T-T) | 0˚C to +50˚C |
| Conductor | Bare copper wire (AWG 23) |
| Drain Wire | yes |
| Shield Around Each Pair | Al/Mylar |
| Sheath | FR-LSZH |
| Outer Diameter | 7.4mm |
| Max. Pulling Tension | 78n |

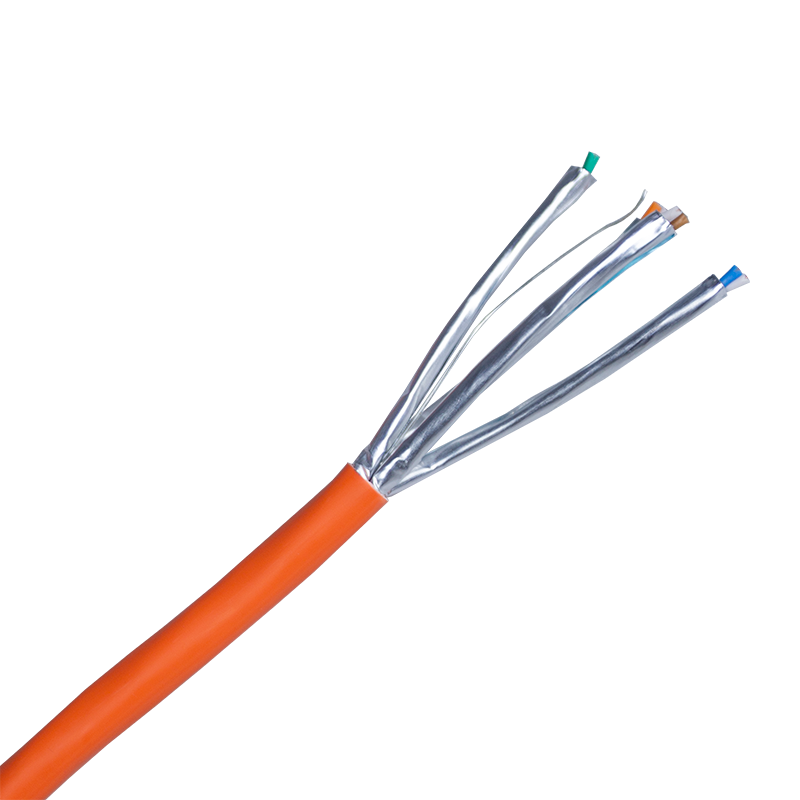

Cat 6a U/FTP LSZH B2ca Solid Cable
Available in 100m & 305m boxes
£238.73
