Features
- Integrated KVM console with 17" or 19" LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Package Contents
- 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
- 1x 2L-5202P PS/2 KVM Cable
- 1x 2L-5202U USB KVM Cable
- 1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x 1ADP-0005-005G Power Cord (AC Power Models)
- 1x User Instructions
- Integrated KVM console with 17" or 19" LCD monitor in a Slideaway™ housing
- Available with or without Fingerprint Identification Reader**
- Space saving technology - up to two consoles (one bus) control up to 8 computers
- Daisy-chain up to 31 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- LCD module USB port allows each computer to access USB peripherals*
- LCD module rotates up to 115 degrees for a more comfortable viewing angle
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
- Supports external USB mouse
- Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
- No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
- Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position
- Port names automatically reconfigured when station sequence is changed
- Two level password security - only authorized users can view and control computers
- Supports one administrator and four user accounts with separate profiles
- Auto Scan mode enables continuous monitoring of user-selected computers
- Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
- Hot pluggable - add or remove computers without having to power down the switch
- Beeper on/off via hotkey and OSD
- Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
Package Contents
- 1x CL5708 LCD KVM Switch with standard Rack Mount Kit
- 1x 2L-5202P PS/2 KVM Cable
- 1x 2L-5202U USB KVM Cable
- 1x LIN5-27X6-U21G 5-in-1 USB / PS/2 Console Cable
- 1x Firmware Upgrade Cable
- 1x 1ADP-0005-005G Power Cord (AC Power Models)
- 1x User Instructions
| Built-in display | Yes |
| Colour of product | Black |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 480 x 634 x 44 mm |
| Display | LCD |
| Display diagonal | 17 " |
| I/O ports | 1 x SPHD-18 Male 8 x SPHD-15 Female 2 x USB Type-A Female 1 x DB-25 Male 1 x RJ-11 Female 1 x 3-prong AC Socket |
| Keyboard port type | USB, PS/2 |
| Maximum resolution | 9600 x 600 DPI |
| Mouse port type | USB, PS/2 |
| Number of computers controlled | 8 |
| Operating temperature (T-T) | 8 - 35 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Power consumption (typical) | 27.5 W |
| Power requirements | 100-240 V, 1 A |
| Power supply type | AC |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Video port type | VGA |
| Weight | 13770 g |
Specific References
- EAN13
- 4710423773684

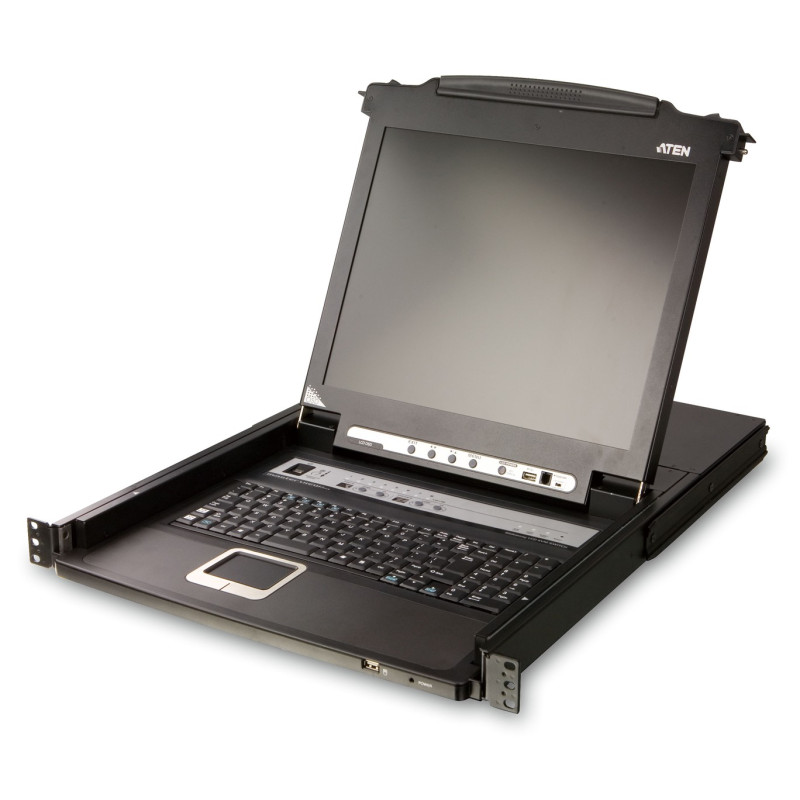

Aten CL5708
8-Port 17" LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port
£1,319.17
£1,099.31 Ex. VAT
8-Port 17" LCD KVM Switch (USB - PS/2 VGA) with USB Peripheral port
