Reasons to Buy

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Work with MC112CS WDM single fiber media converter
Extends fiber distance up to 20km (12.5 miles)

Technical Headlines

Wired
100 Mbit/s 20000 m
Ethernet LAN (RJ-45) ports: 1
Single-mode Fiber ports quantity: 1 SC
Black

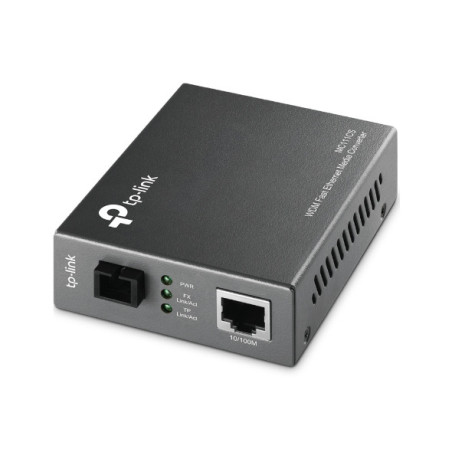

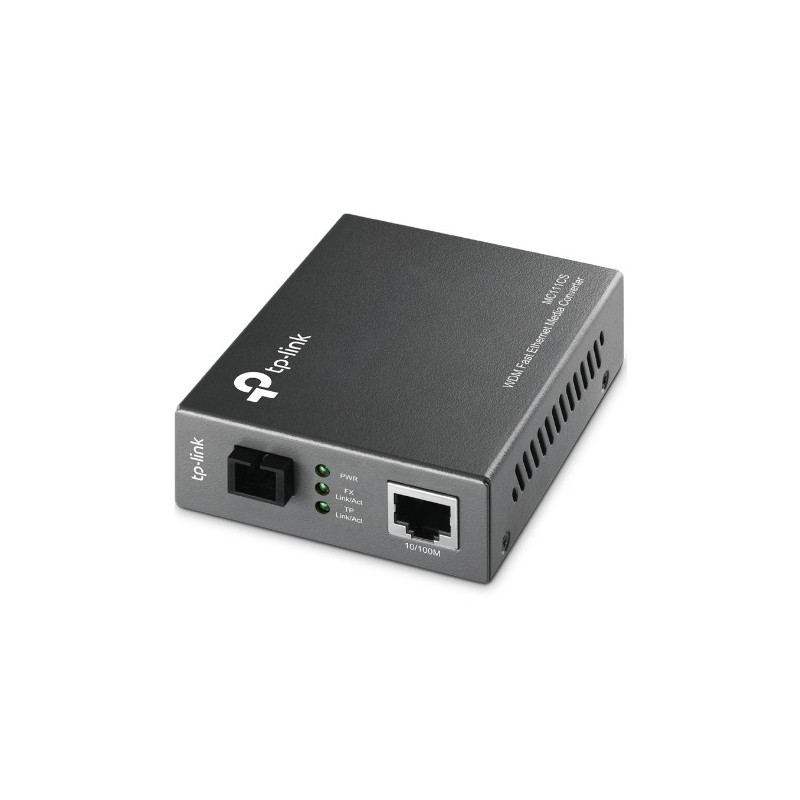

The MC111CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will half cable cost for you. Designed with IEEE 802.3u 100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers(12.5 miles).

Auto MDI/MDI-X	Yes
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Connectivity technology	Wired
Depth	73 mm
Fiber optic connector	XFP
Height	990mm
Maximum data transfer rate	96 Gbit/s
Maximum transfer distance	900 m
Networking standards	Plug and Play, CE, FCC Class A certified, UL, TUV GS, VCCI, C-Tick, BSMI CNS 13438 Class A
Operating temperature (T-T)	8 - 35 °C
Storage temperature (T-T)	8 - 85 °C
Width	993 mm
