One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
- Managed L2/L3
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 10
- MAC address table: 16000 entries Switching capacity: 24 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- Power over Ethernet (PoE)
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
| 10G support | No |
| Basic switching RJ-45 Ethernet ports quantity | 10 10 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) |
| Built-in processor | Y Yes Yes |
| Depth | 200 mm |
| Form factor | 1U |
| Full duplex | Y Yes Yes |
| Heat dissipation | 559.555 BTU/h 559.555 BTU/h 559.555 BTU/h |
| Height | 43.2 mm |
| Internal memory | 2048 MB 2048 MB 2048 MB |
| LED indicators | PoE,Power,Status PoE, Power, Status PoE, Power, Status |
| MAC address table | 16000 entries 16000 entries 16000 entries |
| Mean time between failures (MTBF) | 778769 h 778769 h 778769 h |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Noise level | 30.06 dB 30.06 dB 30.06 dB |
| Non-operating altitude | 0 - 3000 m 0 - 3000 m 0 - 3000 m |
| Number of VLANs | 4093 4093 4093 |
| Operating altitude | 0 - 3000 m 0 - 3000 m 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % 0 - 90% 0 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Packet buffer memory | 16 MB 16 MB 16 MB |
| Power consumption (typical) | 163.9 W 163.9 W 163.9 W |
| Power over Ethernet (PoE) | Yes Yes Yes |
| Processor model | ARM Cortex-A9 ARM Cortex-A9 ARM Cortex-A9 |
| Quality of Service (QoS) support | Y Yes Yes |
| Rack mounting | Yes Yes Yes |
| Spanning tree protocol | Y Yes Yes |
| Storage relative humidity (H-H) | 0 - 95 % 0 - 95% 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C -20 - 70 °C -20 - 70 °C |
| Store-and-forward | Y Yes Yes |
| Switch layer | L2/L3 L2/L3 L2/L3 |
| Switch type | Managed Managed Managed |
| Switching capacity | 24 Gbit/s 24 Gbit/s 24 Gbit/s |
| Throughput | 17.86 Mpps 17.86 Mpps 17.86 Mpps |
| Weight | 2.85 kg |
| Width | 440 mm |
| Harmonized System (HS) code | 85176990 |
Specific References
- EAN13
- 0606449149548

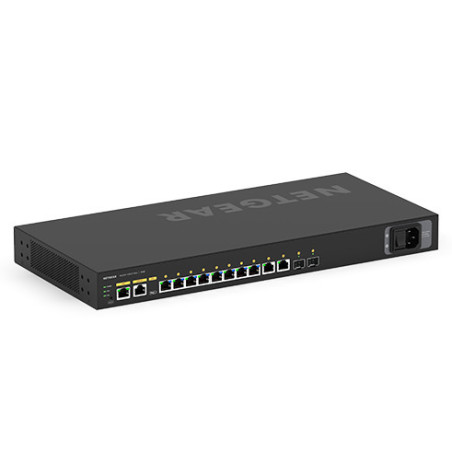

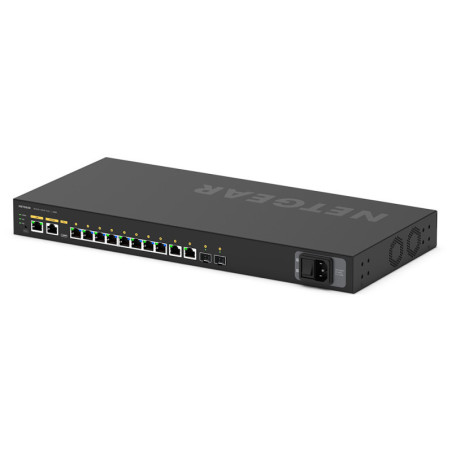

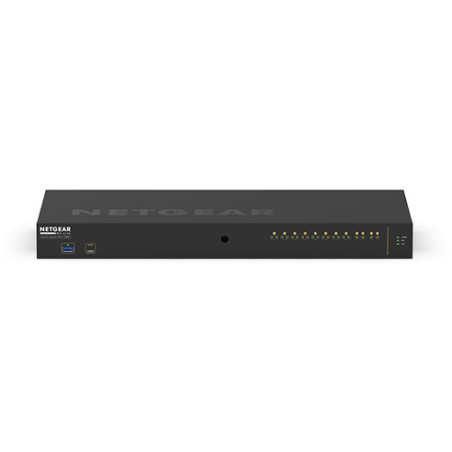

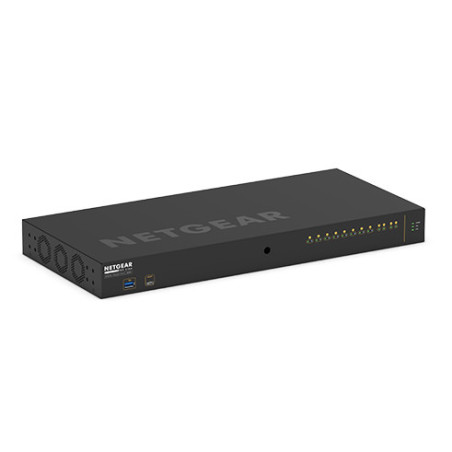

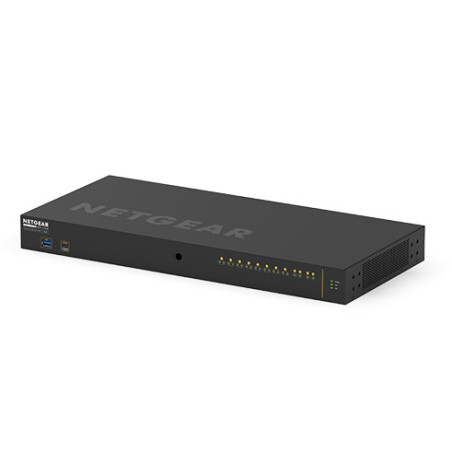

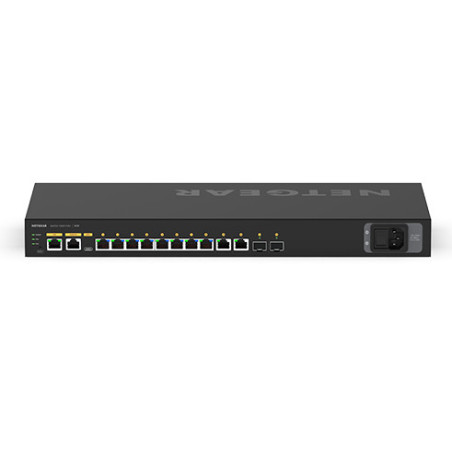

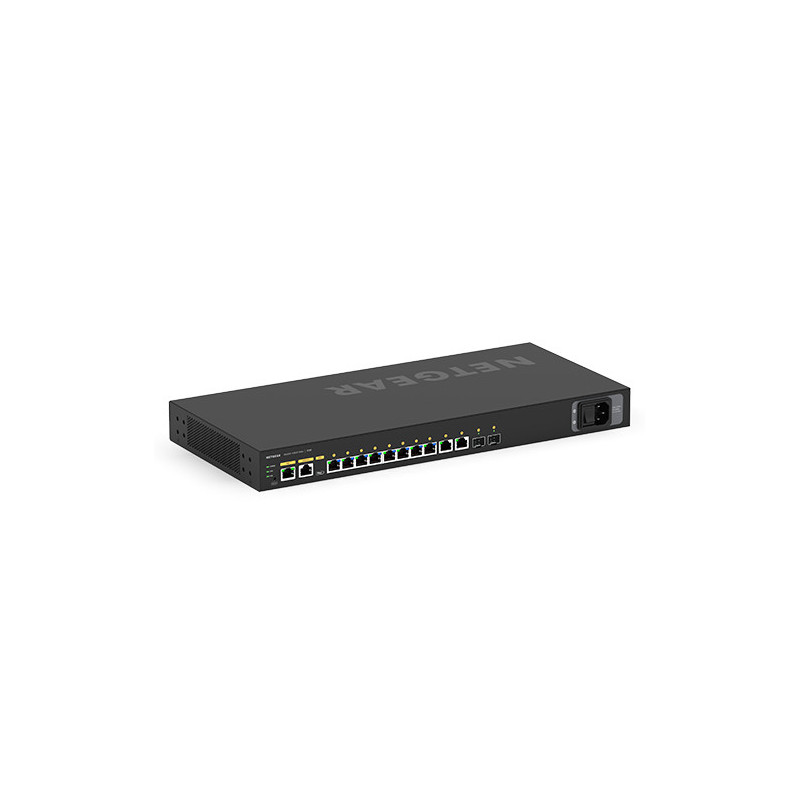

NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
NETGEAR M4250-10G2F, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
£773.11
£644.26 Ex. VAT
