Reasons to Buy
- 8-port switches
- Managed switches
- Smart managed pro switches
- Gigabit Ethernet switches
- PoE switches
- PoE+ switches
- Cloud managed switches
- Managed L2/L3/L4 Web-based management SNMP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- Power supply included Power over Ethernet (PoE)

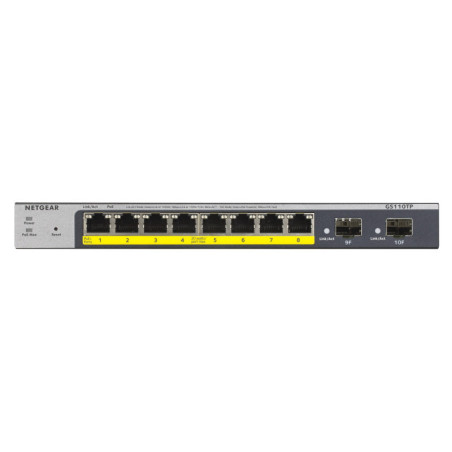

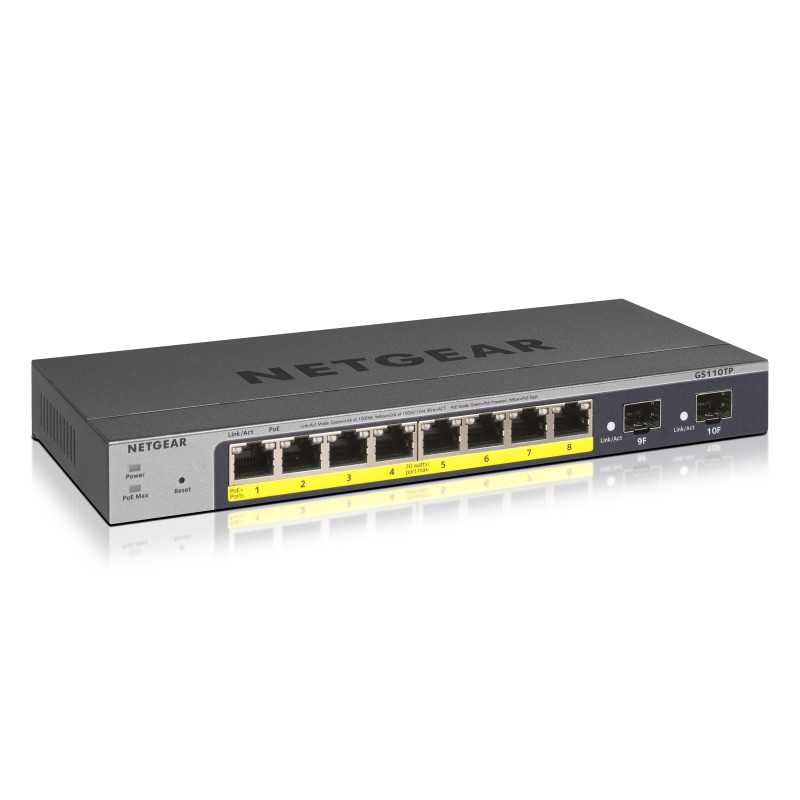

The NETGEAR GS110TPv3 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE copper ports and 2 dedicated SFP ports for fiber uplinks. Cautious spender organizations can now deploy PoE devices with a reasonable PoE power budget of 55W. Each PoE port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPv3 supports perfectly silent desktop operation or wall mounting. The GS110TPv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR’s Lifetime Limited Warranty and 24/7 support including lifetime chat.
| AC input frequency | 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50/60 Hz |
| AC input voltage | 100 - 240 V 100 - 240 V 100 - 240 V 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 8 8 8 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T 10BASE-T,100BASE-TX,1000BASE-T 10BASE-T, 100BASE-TX, 1000BASE-T 10BASE-T, 100BASE-TX, 1000BASE-T |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet Ethernet, Fast Ethernet, Gigabit Ethernet Ethernet, Fast Ethernet, Gigabit Ethernet Ethernet, Fast Ethernet, Gigabit Ethernet |
| Depth | 101 mm |
| Flash memory | 32 MB 32 MB 32 MB 32 MB |
| Flow control support | Y Yes Yes Yes |
| Full duplex | Y Yes Yes Yes |
| Heat dissipation | 237.38 BTU/h 237.38 BTU/h 237.38 BTU/h 237.38 BTU/h |
| Height | 27 mm |
| Input current | 1.25 A 1.25 A 1.25 A 1.25 A |
| Internal memory | 128 MB 128 MB 128 MB 128 MB |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed Activity, LAN, Link, PoE, Power, Speed Activity, LAN, Link, PoE, Power, Speed Activity,LAN,Link,PoE,Power,Speed |
| MAC address filtering | Y Yes Yes Yes |
| MAC address table | 8000 entries 8000 entries 8000 entries 8000 entries |
| Management protocols | SNMP SNMP SNMP SNMP |
| Manual | Y Yes Yes Yes |
| Mean time between failures (MTBF) | 1200041 h 1200041 h 1200041 h 1200041 h |
| Memory type | RAM RAM RAM RAM |
| Networking standards | IEEE 802.3ab,IEEE 802.3af,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Non-operating altitude | 0 - 3000 m 0 - 3000 m 0 - 3000 m 0 - 3000 m |
| Number of VLANs | 64 64 64 64 |
| Operating altitude | 0 - 3000 m 0 - 3000 m 0 - 3000 m 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95 % 0 - 95% 0 - 95% 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Package height | 86 mm 86 mm 86 mm 86 mm |
| Package weight | 1.49 kg 1.49 kg 1.49 kg 1490 g |
| Package width | 161 mm 161 mm 161 mm 161 mm |
| Packet buffer memory | 0.5 MB 0.5 MB 0.5 MB 0.5 MB |
| Power over Ethernet (PoE) | Yes Yes Yes Yes |
| Quality of Service (QoS) support | Y Yes Yes Yes |
| Rack mounting | No No No |
| Security algorithms | 802.1x RADIUS 802.1x RADIUS 802.1x RADIUS 802.1x RADIUS |
| Spanning tree protocol | Y Yes Yes Yes |
| Storage relative humidity (H-H) | 0 - 95 % 0 - 95% 0 - 95% 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C -20 - 70 °C -20 - 70 °C -20 - 70 °C |
| Store-and-forward | Y Yes Yes Yes |
| Supported network protocols | HTTP, HTTPS |
| Switch layer | L2/L3/L4 L2/L3/L4 L2/L3/L4 L2/L3/L4 |
| Switch type | Managed Managed Managed Managed |
| Switching capacity | 20 Gbit/s 20 Gbit/s 20 Gbit/s 20 Gbit/s |
| Switching protocols | SNMP SNMP SNMP SNMP |
| Web-based management | Y Yes Yes Yes |
| Weight | 610 g |
| Width | 236 mm |
| Master (outer) case width | 274 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 309 mm |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case gross weight | 9.73 kg 9.73 kg 9.73 kg |
| Products per master (outer) case | 6 pc(s) 6 pc(s) 6 pc(s) |
Specific References
- EAN13
- 0606449137644
NETGEAR GS110TP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
NETGEAR GS110TP, Managed, L2/L3/L4, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
£140.87
£117.39 Ex. VAT
