More Info
Details

Reasons to Buy

Gigabit Ethernet Speeds
Cutting Edge Green Technology
Manage Anywhere, Anytime

Technical Headlines

Managed L2
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 16
1000BASE-T
Switching capacity: 36 Gbit/s
1U Rack mounting
DC/PoE Power supply included Power over Ethernet (PoE)

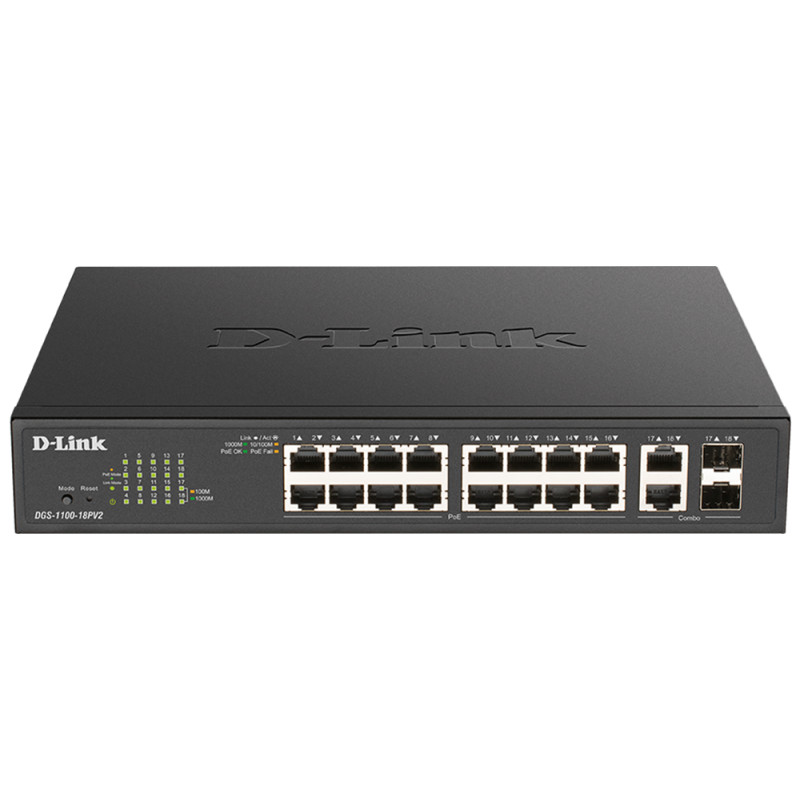

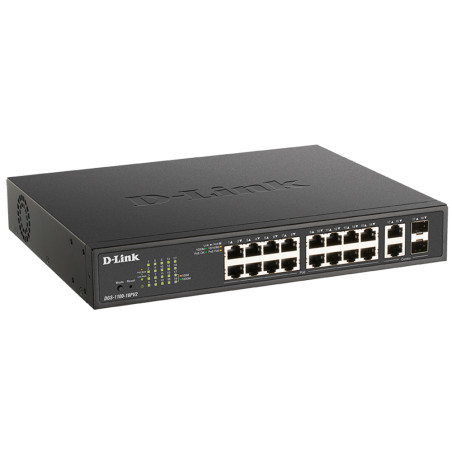

Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.

Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.

VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.

Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.

PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have Cameras attached to your network,
you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle
of the night.

10G support	No
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Certification	cUL, UL, LVD, CB, BSMI
Copper ethernet cabling technology	1000BASE-T
Depth	230 mm
Electromagnetic compatibility	FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI
Ethernet LAN data rates	10,100,1000 Mbit/s
Flow control support	Yes
Form factor	1U
Full duplex	Yes
Heat dissipation	125.2 BTU/h
Height	44 mm
Mean time between failures (MTBF)	343695 h
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Noise level	45.8 dB
Number of VLANs	4094
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	-5 - 50 °C
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	16
Power source	DC/PoE
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Source data-sheet	Icecat.biz
Spanning tree protocol	Yes
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-40 - 70 °C
Switch layer	L2
Switch type	Managed
Switching capacity	36 Gbit/s
Weight	2.1 kg
Width	280 mm
Half duplex	Yes
Compliance certificates	RoHS
