Reasons to Buy
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent operation
- Desktop, wall-mountable or rack-mountable (GS324, GS348)
- Unmanaged
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16
- MAC address table: 4000 entries Switching capacity: 32 Gbit/s
- Power over Ethernet (PoE)
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data from a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these models also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
| 10G support | No |
| Auto MDI/MDI-X | Y Yes Yes Yes |
| Basic switching RJ-45 Ethernet ports quantity | 16 16 16 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) Gigabit Ethernet (10/100/1000) |
| Depth | 102 mm |
| Flow control support | Y Yes Yes Yes |
| Full duplex | Y Yes Yes Yes |
| Heat dissipation | 437.42 BTU/h 437.42 BTU/h 437.42 BTU/h 437.42 BTU/h |
| Height | 27 mm |
| Housing material | Metal |
| Input current | 2.4 A 2.4 A 2.4 A 2.4 A |
| LED indicators | Y Yes Yes Yes |
| MAC address table | 4000 entries 4000 entries 4000 entries 4000 entries |
| Mean time between failures (MTBF) | 2362192 h 2362192 h 2362192 h 2362192 h |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Operating altitude | 0 - 3000 m 0 - 3000 m 0 - 3000 m 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90 % 0 - 90% 0 - 90% 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 1 MB 1 MB 1 MB 1 MB |
| Power over Ethernet (PoE) | Yes Yes Yes Yes |
| Quality of Service (QoS) support | Y Yes Yes Yes |
| Rack mounting | No No No Yes |
| Storage temperature (T-T) | -20 - 70 °C -20 - 70 °C -20 - 70 °C -20 - 70 °C |
| Switch type | Unmanaged Unmanaged Unmanaged Unmanaged |
| Switching capacity | 32 Gbit/s 32 Gbit/s 32 Gbit/s 32 Gbit/s |
| Weight | 880 g |
| Width | 286 mm |
| Harmonized System (HS) code | 85176990 |
Specific References
- EAN13
- 0606449146882

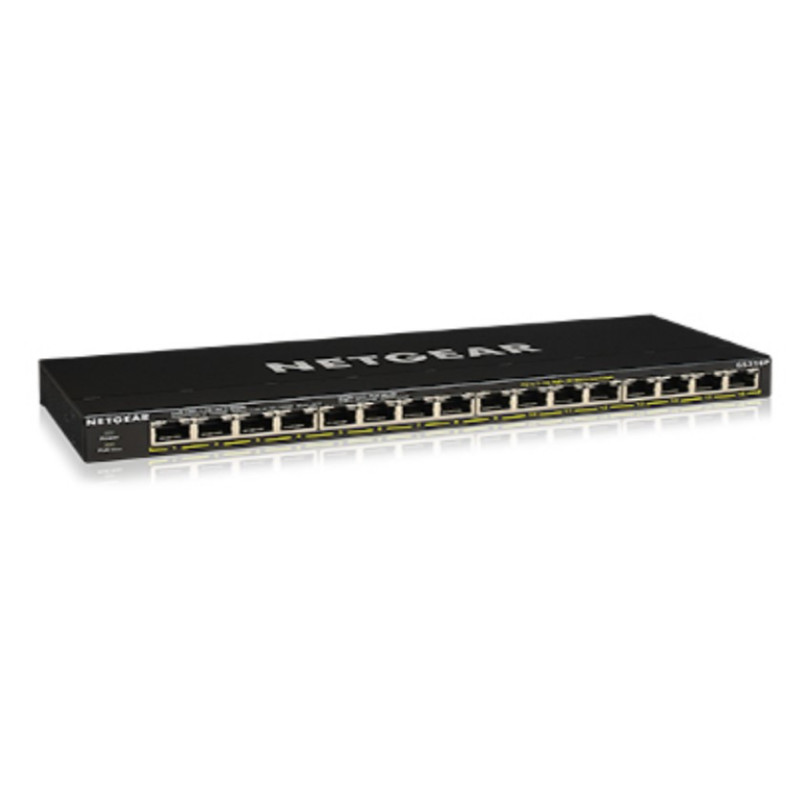

NETGEAR GS316P Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
NETGEAR GS316P, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
£189.57
£157.98 Ex. VAT
