Smart Web UI

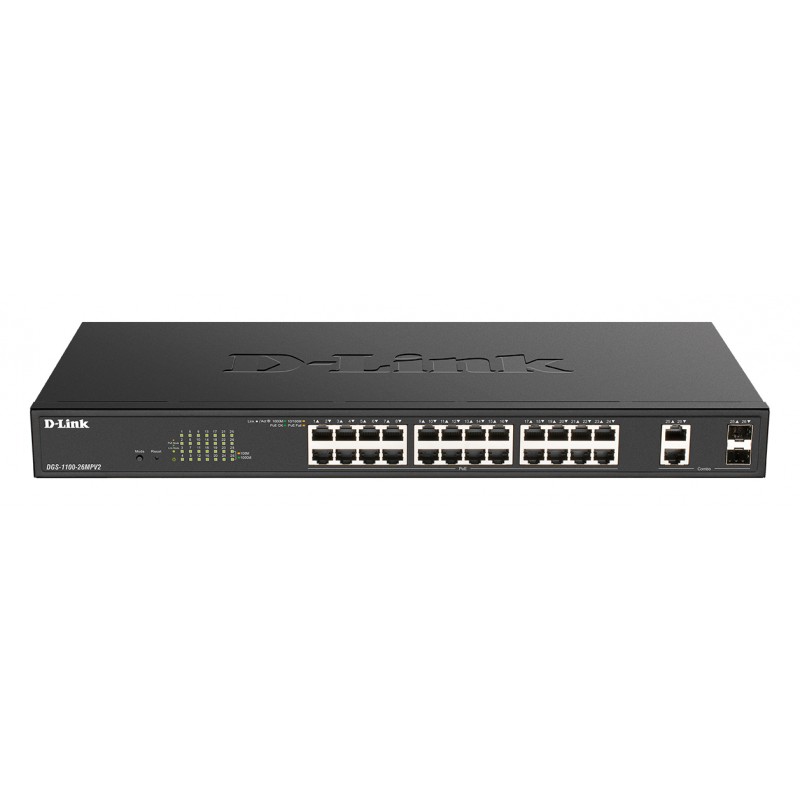

The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Easy to Deploy and Manage
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
PoE and Poe+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which also enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
AC input frequency |
50/60 Hz |
AC input voltage |
100 - 240 V |
Auto MDI/MDI-X |
Y |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Copper ethernet cabling technology |
10GBASE-T,1000BASE-T |
Depth |
208 mm |
Flash memory |
16 MB |
Flow control support |
Y |
Full duplex |
Y |
Heat dissipation |
287 BTU/h |
Height |
44 mm |
Housing material |
Metal |
MAC address filtering |
Y |
MAC address table |
8 entries |
MIB support |
• RFC768 UDP • RFC791 IP • RFC792 ICMP • RFC793 TCP • RFC826 ARP • RFC1213 MIB II • RFC1493 Bridage MIB • RFC1907 SNMPv2 MIB • RFC1215 MIB Traps Convention |
Networking standards |
IEEE 802.1D,IEEE 802.1w,IEEE 802.3af,IEEE 802.3at |
Noise level |
50.5 dB |
Operating relative humidity (H-H) |
0 - 95 % |
Operating temperature (T-T) |
-10 - 50 °C |
Power over Ethernet (PoE) |
Yes |
Power over Ethernet (PoE) ports quantity |
24 |
Quality of Service (QoS) support |
Y |
Rack mounting |
Yes |
Security algorithms |
SSL/TLS |
Spanning tree protocol |
Y |
Storage relative humidity (H-H) |
0 - 95 % |
Storage temperature (T-T) |
-40 - 70 °C |
Switch layer |
L2 |
Switch type |
Managed |
Switching capacity |
52 Gbit/s |
Web-based management |
Y |
Weight |
2800 g |
Width |
440 mm |
Fanless |
Y |
Half duplex |
Y |
MTBF (PoE) |
317.777 h |
Specific References
- EAN13
- 0790069453342
