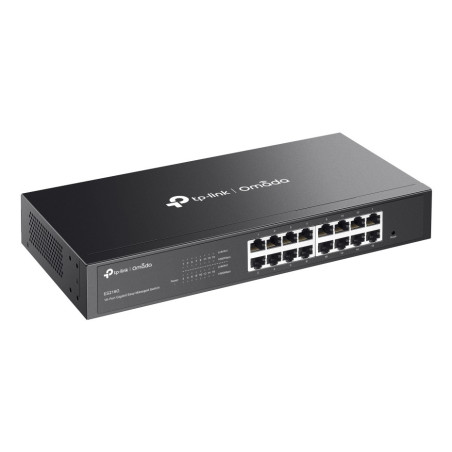

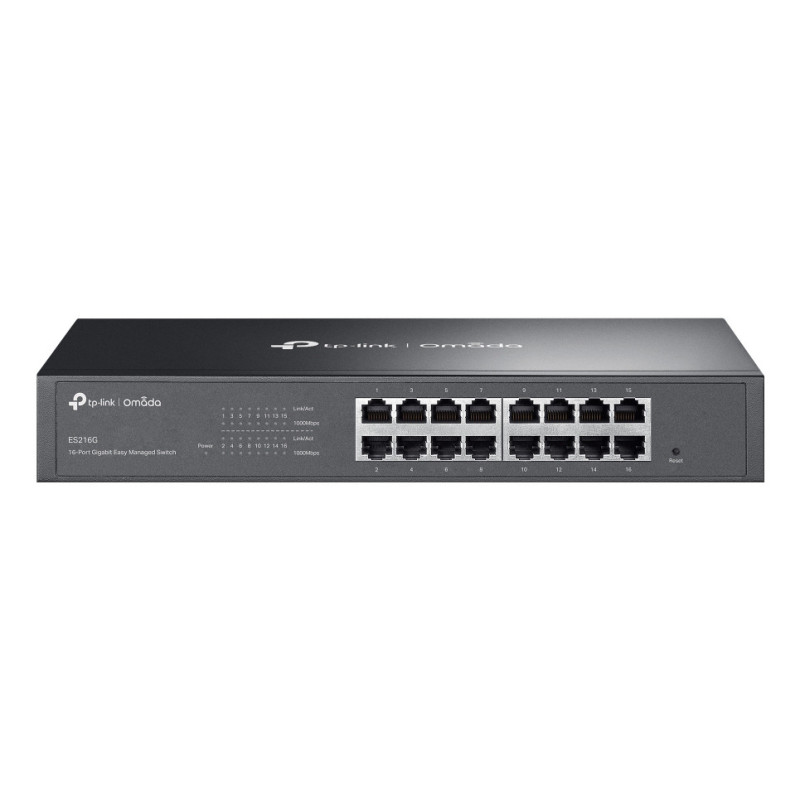

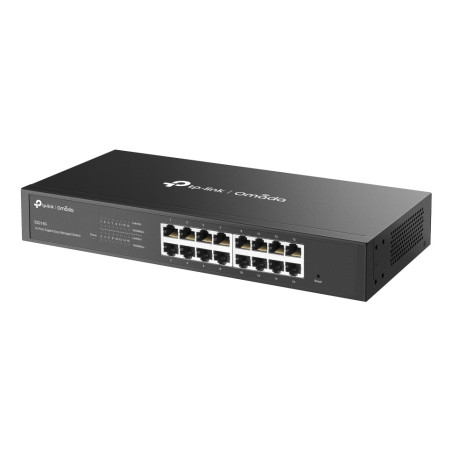

Reasons to Buy

16× 10/100/1000Mbps RJ45 ports
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app†
VLAN, Port Isolation, Cable Test△, QoS△ for reliable surveillance networking
Automatic Loop Prevention and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/rack mounting design

Technical Headlines

Managed L2 Web-based management
Quality of Service (QoS) support
Basic switching RJ-45 Ethernet ports quantity: 16
MAC address table: 8000 entries Switching capacity: 32 Gbit/s
Rack mounting
AC Power supply included

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management

Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

10G support	No
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Auto MDI/MDI-X	Yes
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Cables included	AC
Depth	140 mm
Firmware upgradeable	Yes
Flash memory	64 MB
Flow control support	Yes
Gigabit Ethernet (copper) ports quantity	16
Heat dissipation	28.52 BTU/h
Height	44 mm
LED indicators	Yes
MAC address table	8000 entries
Mean time between failures (MTBF)	2131140 h
Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
Number of VLANs	32
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-5 - 50 °C
Packet buffer memory	4 MB
Power over Ethernet (PoE)	No
Power source	AC
Quality of Service (QoS) support	Yes
Rack mounting	Yes
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 70 °C
Store-and-forward	Yes
Switch layer	L2
Switch type	Managed
Switching capacity	32 Gbit/s
User guide	Yes
Web-based management	Yes
Width	294 mm
Fanless	Yes
Cloud-managed	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Unified static configuration	Yes
