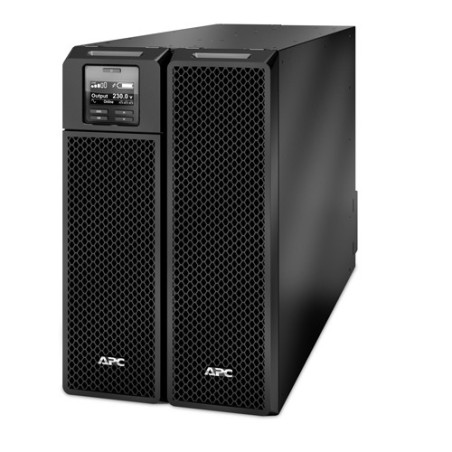

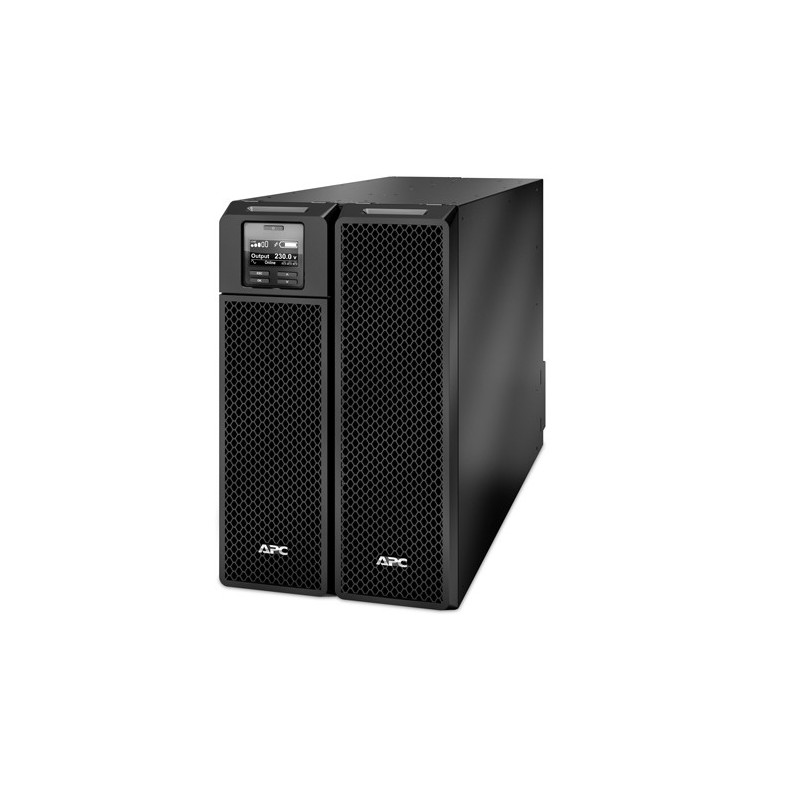

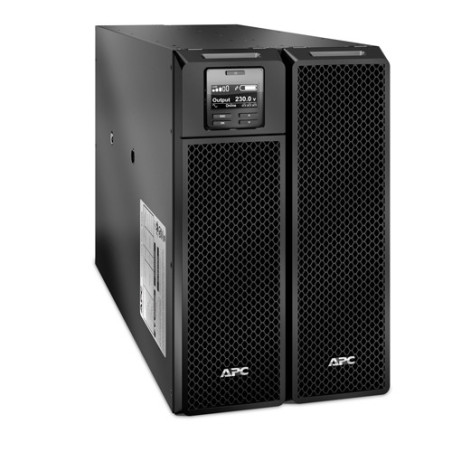

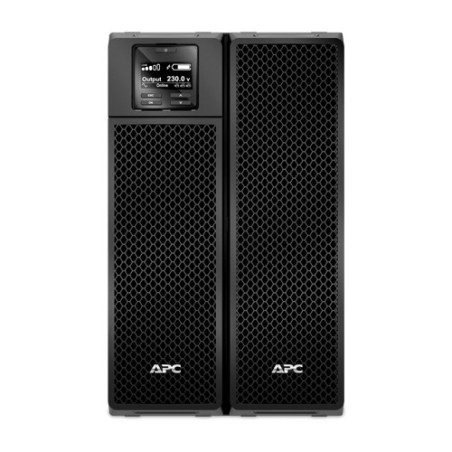

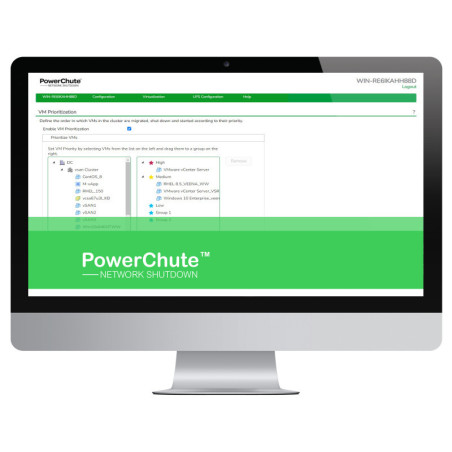

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.
- Double-conversion (Online)
- 8 kVA 8000 W
- Waveform: Sine
- 10 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 8kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E)/5-wire(3P+N+E) input, 6x IEC 320 C13, 4x IEC 320 C19 outlets, and 3x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

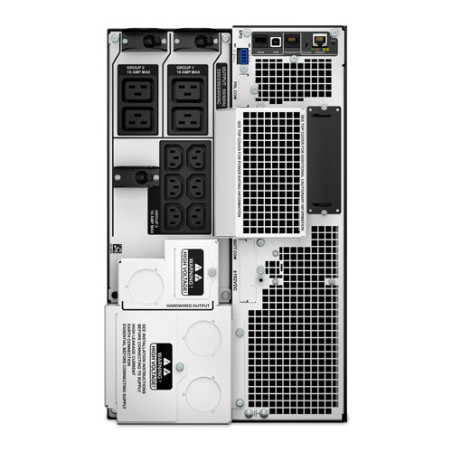

| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 10 AC outlet(s) |
| Battery capacity | 1728 VAh |
| Battery recharge time | 1.5 h |
| Battery technology | Sealed Lead Acid (VRLA) |
| Cables included | USB cable |
| Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Crest factor | 3:1 |
| Depth | 715 mm |
| Form factor | Rackmount/Tower |
| Height | 432 mm |
| Hot-swap battery | Yes |
| Input frequency | 40 - 70 Hz |
| Input operation voltage (max) | 476 V |
| Input operation voltage (min) | 100 V |
| International Protection (IP) code | IP20 |
| LED indicators | Status |
| Noise level | 55 dB |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 8000 W |
| Package height | 461 mm |
| Package weight | 126.8 kg |
| Package width | 600 mm |
| Power plug | Hardwire |
| Quick installation guide | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Surge energy rating | 480 J |
| USB port | Yes |
| Waveform | Sine |
| Weight | 111.8 kg |
| Width | 263 mm |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Products per pallet | 1 pc(s) |
| Total carbon footprint (kg of CO2e) | 18610.79 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
Specific References
- EAN13
- 5712505310311
APC Smart-UPS On-Line, 8kVA/8kW, Tower, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W
APC Smart-UPS On-Line, 8kVA/8kW, Tower, 230V 3:1 and 1:1, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit, Double-conversion (Online), 8 kVA, 8000 W, Sine, 100 V, 476 V
£6,745.16
£5,620.97 Ex. VAT
