APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
AC outlet types C13 coupler, C19 coupler
AC outlets quantity 42 AC outlet(s)
Cable length 1.83 m
Certification EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Colour of product Black
Dimensions (WxDxH) 56 x 51 x 1829 mm
Input frequency 50/60 Hz
LED indicators Yes
Maximum current 32 A
Maximum input current per phase 32 A
Nominal input voltage 400 V
Nominal output voltage 230 V
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Operating relative humidity (H-H) 5 - 95 %
Operating relative humidity range 5 - 95 %
Operating temperature (T-T) 0 - 55 °C
Operating temperature range (T-T) 0 - 55 °C
Output connections 30 x IEC 320 C13 12 x IEC 320 C19
Package dimensions (WxDxH) 170 x 112 x 2050 mm
Package weight 11550 g
PDU types Metered
Power protection features Overload
Rack mounting 0U
RoHS compliance Yes
Source data-sheet Icecat.biz
Storage relative humidity (H-H) 5 - 95 %
Storage relative humidity range 5 - 95 %
Storage temperature (T-T) -25 - 65 °C
Storage temperature range (T-T) -25 - 65 °C
Weight 8720 g
EAN 0731304289937
Manufacturer APC

APC AP8886

£1,511.53 Inc VAT.

£1,259.61

In Stock

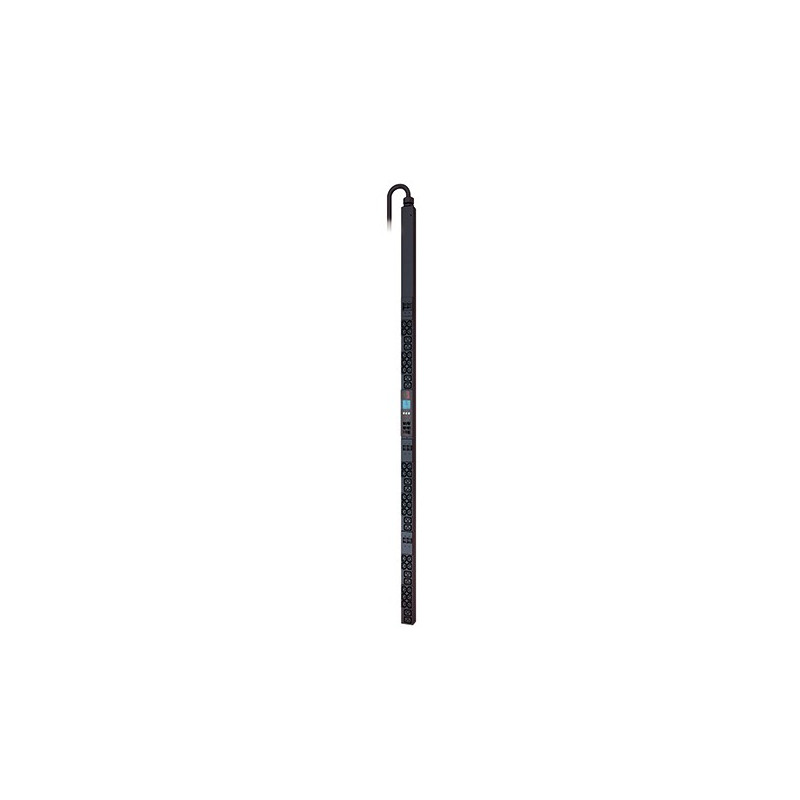

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A) 17.3kW(24A), 230V, (30) C13 & (12) C19 More details

AP8886
