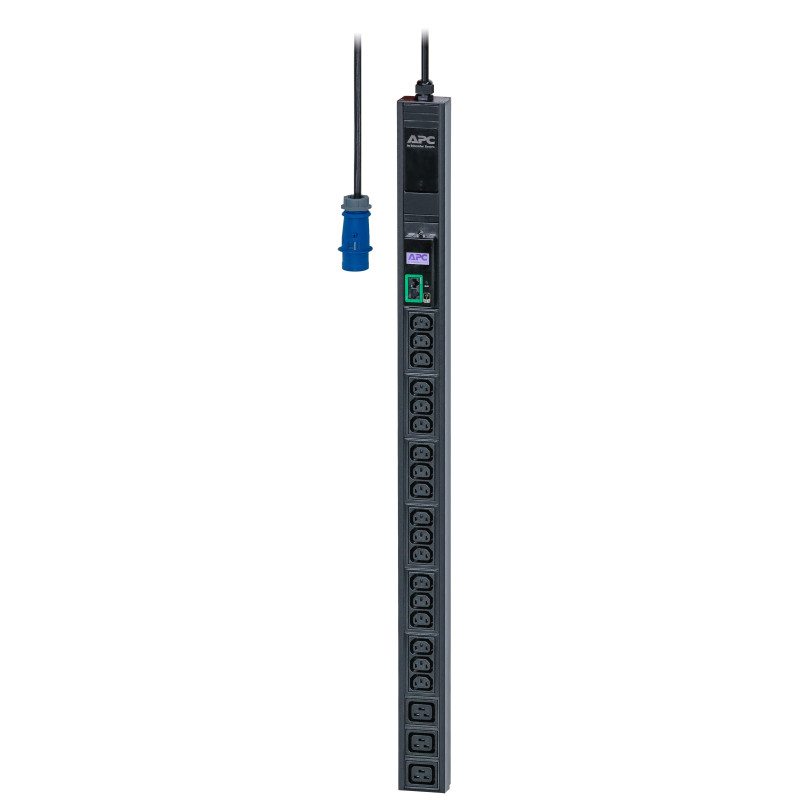

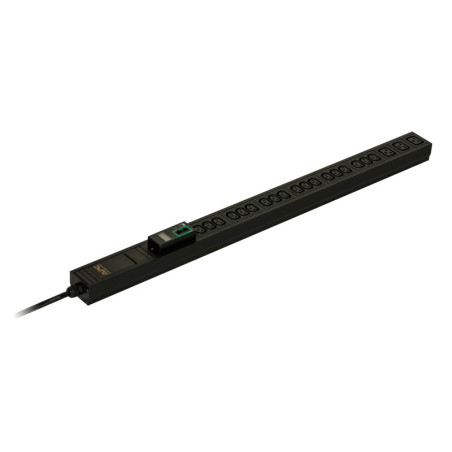

APC Easy Metered Rack PDU EPDU1116M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1116M has IEC 60309 16A 2P+E type inlet, eighteen IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual and vertical mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.
- Single-phase Metered 0U Black
- LCD
- 21 AC outlet(s) C13 coupler, C19 coupler
- 3680 W
APC Easy Metered Rack PDU EPDU1116M is Easy-to-install and easy-to-use PDU, making rack power distribution easy and intelligent. This provides real-time remote monitoring, power management of connected loads, and much more features than the average power strip. EPDU1116M has IEC 60309 16A 2P+E type inlet, eighteen IEC C13 and three IEC C19 type outlet sockets. This is vertical rack mountable PDU in ultra light weight and smart, multifunctional new designed display. Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Full-featured user friendly network management web interface provides standards-based management via Web, SNMP, and Command Line Interface. Allows users to access, configure, and manage units from remote locations to save valuable time. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. The packaging includes installation guide, user manual and vertical mounting brackets for quick and easy mounting in the rear of the enclosure. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty.
| AC input frequency | 50 - 60 Hz |
| AC outlet types | C13 coupler, C19 coupler |
| AC outlets quantity | 21 AC outlet(s) |
| Cable length | 3 m |
| Certification | CE, TUV |
| Depth | 44 mm |

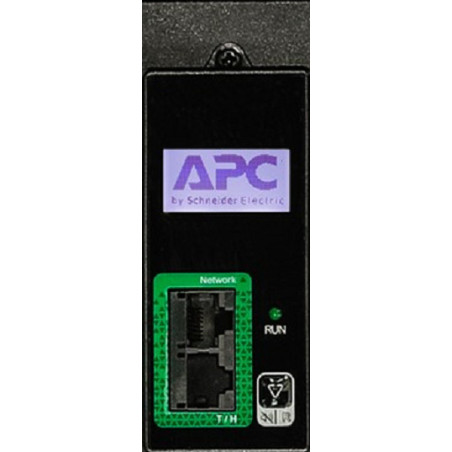

| Display | LCD |
| Firmware upgradeable | Yes |
| Height | 902 mm |
| Housing material | Aluminium |
| LED indicators | Yes |
| Load capacity | 3680 VA |
| Manual | Yes |
| Maximum current | 16 A |
| Maximum input current per phase | 16 A |
| Monitoring | Current, Power, Voltage |
| Mounting | Vertical |
| Nominal input voltage | 200/208/230 V |
| Nominal output voltage | 230 V |
| Non-operating altitude | 0 - 15000 m |
| On/off switch | No |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -5 - 45 °C |
| Package height | 1320 mm |
| Package weight | 3 kg |
| Package width | 160 mm |
| PDU types | Metered |
| Power plug | IEC 60309 |
| Rack capacity | 0U |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Type | Single-phase |
| Weight | 2.5 kg |
| Width | 62 mm |
| Compliance certificates | RoHS |
| Total carbon footprint (kg of CO2e) | 18942.6 |
Specific References
- EAN13
- 0731304405085
APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet
APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet, Metered, 0U, Single-phase, Vertical, Aluminium, Black
£515.09
£429.24 Ex. VAT
