Technical Headlines

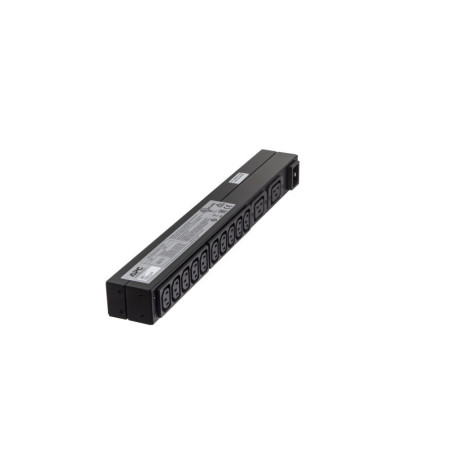

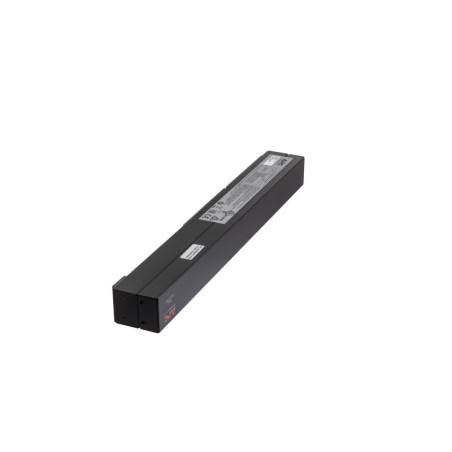

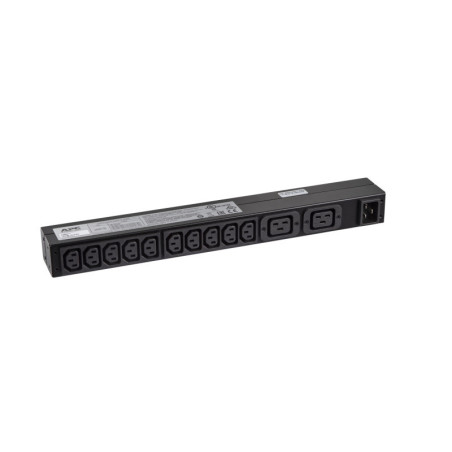

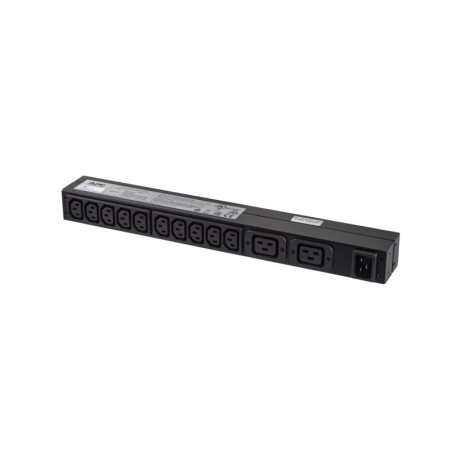

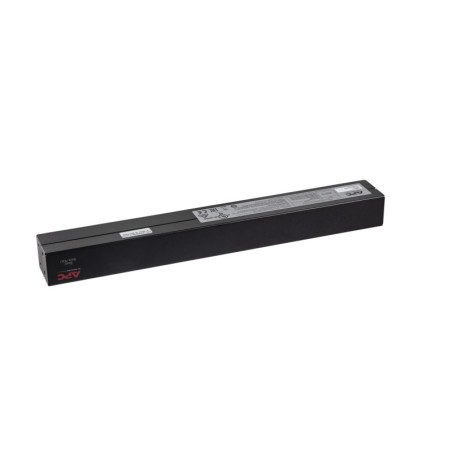

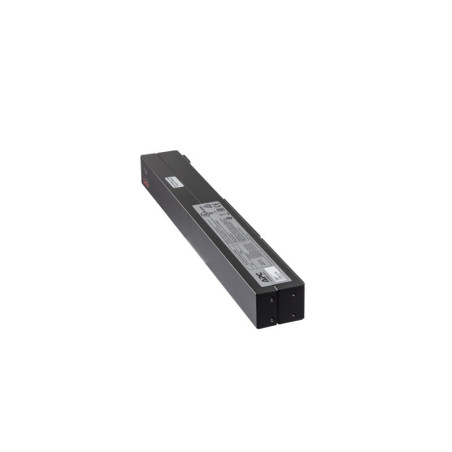

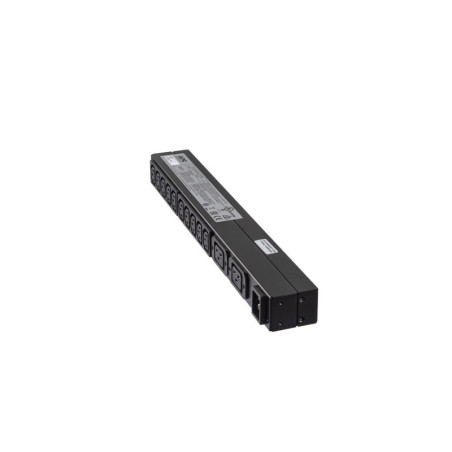

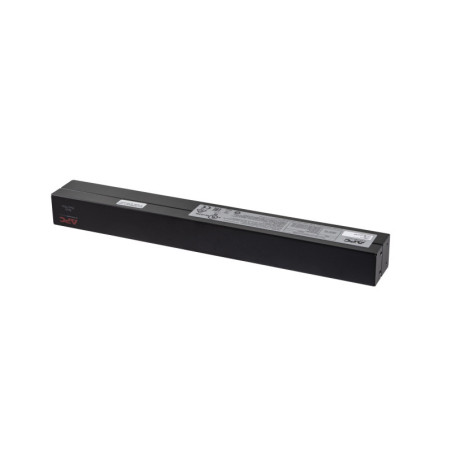

Single-phase Basic 0U/1U Black
12 AC outlet(s) C13 coupler, C19 coupler
3680 W

Description:

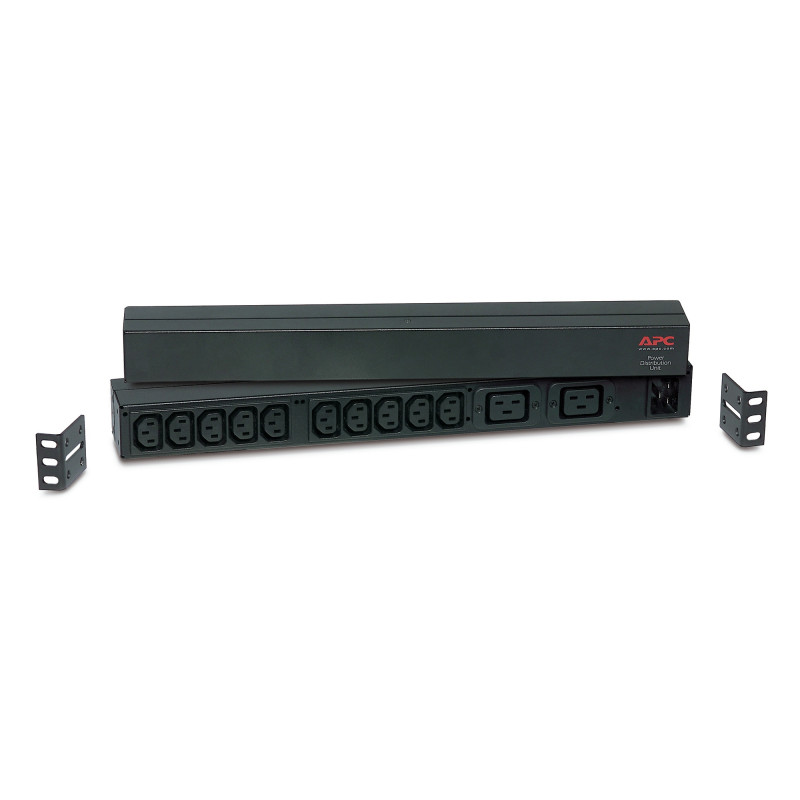

APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19

Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual

Output Voltage(s) (main only) - 120, 208, 230 V

Maximum Total Current Draw per Phase - 16 A

Output Connections - (10)IEC 320 C13; (2)IEC 320 C19

Always on Outlets - 12
Overload Protection

Input:

Nominal input voltage - 120, 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C20

Cord Length 8.2 feet ( 2.5 meters )

Acceptable Input Voltage - 90-250 VAC

Maximum Line Current per phase - 16.0 A

Maximum Input Current per phase - 16.0 A

Load Capacity - 3680

AC outlet types	C13 coupler, C19 coupler
AC outlets quantity	12 AC outlet(s)
Cable length	2.5 m
Depth	57.2 mm
Height	44.5 mm
I/O ports	Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
Load capacity	3680 VA
Maximum input current per phase	16 A
Mounting	Horizontal/Vertical
Operating relative humidity (H-H)	0 - 95%
Operating temperature (T-T)	0 - 45 °C
PDU types	Basic
Power plug	C20 coupler
Rack capacity	0U/1U
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-25 - 65 °C
Type	Single-phase
Weight	980 g
Width	447 mm
