More Info
Details

Reasons to Buy

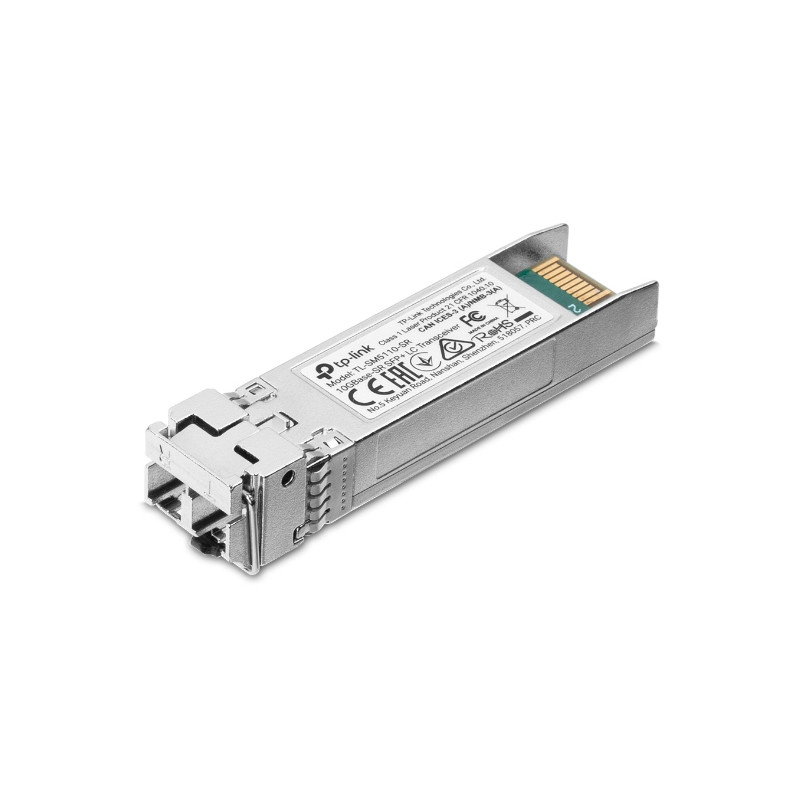

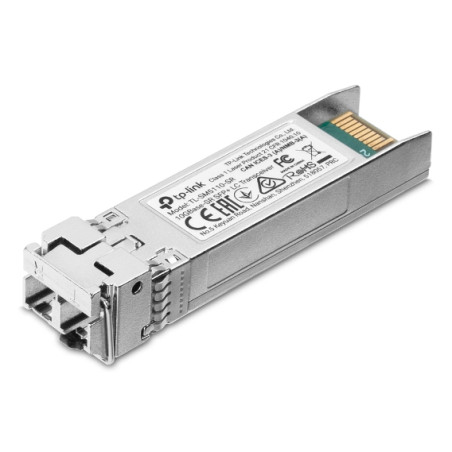

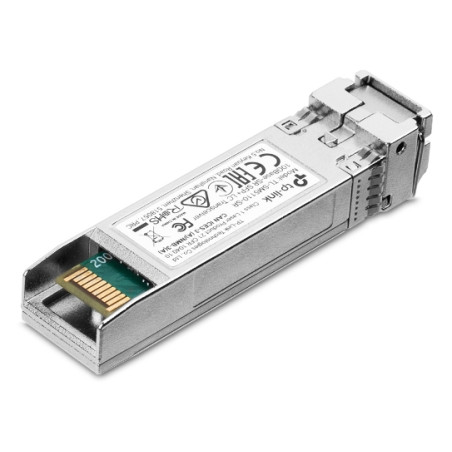

Multi-mode SFP+ LC Transceiver
Hot-Pluggable with maximum flexibility
Supports Digital Diagnostic Monitoring (DDM)
Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more

Technical Headlines

SFP+ Fiber optic 10000 Mbit/s
Wavelength: 850 nm
Hot-swap
Input voltage: 3.3 V

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Certification	FCC, CE
Depth	14.5 mm
Fiber optic connector	LC (UPC)
Height	12.2 mm
Input voltage	3.3 V
Interface type	SFP+
Maximum data transfer rate	10000 Mbit/s
Operating relative humidity (H-H)	10 - 90%
Quantity per pack	1 pc(s)
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	5 - 90%
Storage temperature (T-T)	-40 - 80 °C
Wavelength	850 nm
Width	61.3 mm
SFP transceiver standard	SR
Minimum operating temperature	0 °C
