Fusion Splicers & Termination Kits
  • Fusion Splicers & Termination Kits
  • Fusion Splicers & Termination Kits
  • Fusion Splicers & Termination Kits

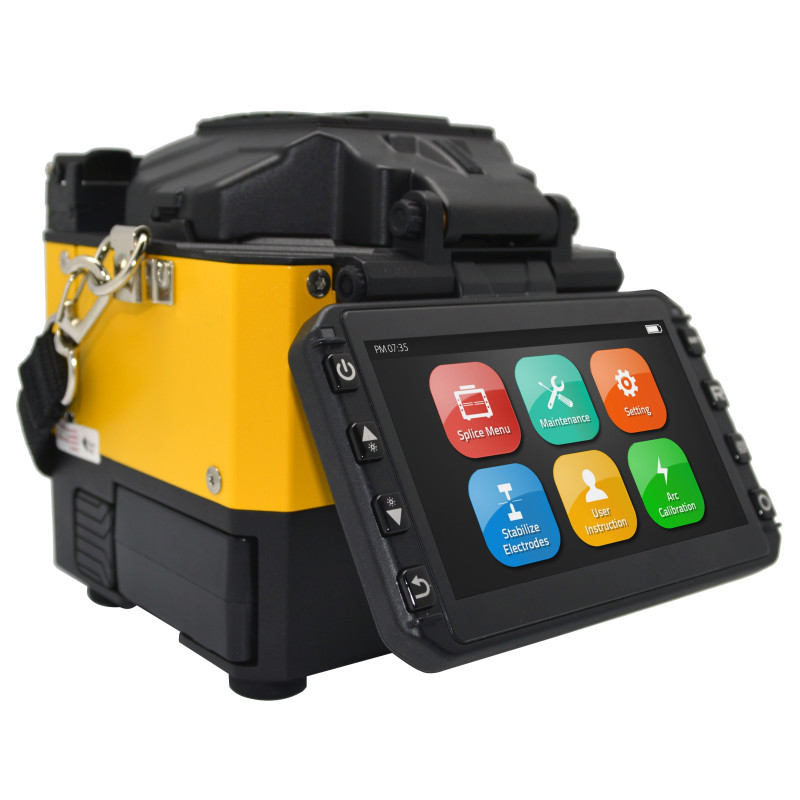

The Mini 22A active alignment splicer with it’s innovative design and improved technology greatly reduces splicing and heating time. The digitalised active alignment technique ensures the accuracy of the splice loss estimation., whilst it’s small size, compact design and reliable protective casing make it suitable for any operating environment - the perfect solution for FTTH. The Mini 22A is very user friendly with it’s full touch-screen interface and the automatic splice mode is very simple to use.

Features & Benefits
  • Heating time - 18 sec <60 mm sleeve>
  • Active alignment DAA (Digitalised Active Alignment).
  • One battery is included in the standard package - 200 cycles (splicing & heating)
  • Full touch screen - GUI interface & tempered glass
  • SOC compatible
  • Anti-shock, dust proof and waterproof
  • Mini 50G Cleaver included
Cladding diameter80-150um
Power supplyAC 100-240V input or DC 9~14V
Size122mm X 124mm X 138 mm
Weight1.31Kg (without battery)
Splicing MethodActive Alignment DAA(Digitalized Active Alignment)
Splice Time12s average SM / SM 7s Quick mode
Return Loss>>60dB
Average LossSSM(0.02dB) / MM(0.01dB) / DS(O.OSdB) / NZDS(O.OSdB) / G.657(0.02dB)
Applicable FibreSM(ITU-T G.652&G.657), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B / 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
Coating Diameter100-1,000um
Heating ProgramsFactory installed mode : 3, User installable mode : 23
Heating TimeTypical 18s
Protection Sleeve40mm, 60mm, SOC-3.0, SOC-0.9
Data OutputMicro HDMI-USB master device
Splice Programs8 User modes, User installable mode: 70+
Splice MemoryUp to 2,000 records
MonitorColor 4.3 inch LCD monitor, with Touch Screen (Tempered Glass)
Cameras2 CCD camera system
MagnificationY: 150 times , X/Y: 300 times
Wind ProtectionThe max wind speed 15m/s
Storage ConditionTemperature -20 to 40˚C, 0~95% relative humidity, battery -20~30˚C
Pull Test1.96~2.25N (standard)
BatteryTypical 200 Cycles (Splice & Heat)
Cleaved LengthCoating Diameter < 0.25mm = 5-16mm, Coating, Diameter > 0.25mm = 8-16mm minimum
Operating EnvironmentElevation 0-5,000 meters, -15~60˚C, 0~95% relative humidity
Attenuation SplicingRange : 0.1dB ~ 20dB (0.1dB step)
Electrode Life Span>3,500 arcs
Fibre DisplayX/Y or XY, single X.Y
