The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
- LCD display for real-time status and measurements.
- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
- Up to 8 outlets to connect your PC & peripherals.
- Convenient extra-flat design for easy installation in any office environment.
- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
- Protects data connections such as Ethernet, internet and telephone lines.
Specification
- LCD display for real-time status and measurements.
- Delivers clean output with Automatic Voltage Regulation (AVR, with buck and boost).
- EcoControl function helps you save up to 20% energy compared to previous generation UPSs.
- Includes a high performance surge-protection device which complies with IEC 61643-1 standard.
- Up to 8 outlets to connect your PC & peripherals.
- Convenient extra-flat design for easy installation in any office environment.
- USB port & Eaton UPS Companion software that enables safe system shutdown, energy usage metering and easy configuration of UPS settings.
- Protects data connections such as Ethernet, internet and telephone lines.
Specification
| C13 coupler | |
| AC outlets quantity | 8 AC outlet(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Colour of product | Black |
| Depth | 390 mm |
| Display | LCD |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN (RJ-45) ports quantity | 1 |
| Form factor | Rackmount/Tower |
| Height | 275 mm |
| Input operation voltage (max) | 285 V |
| Input operation voltage (min) | 165 V |
| LED indicators | Yes |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output power | 750 W |
| Output power capacity (VA) | 1200 VA |
| Power plug | C14 coupler |
| Power supply input frequency | 50/60 Hz |
| Rack capacity | 2U |
| Rack mounting | Yes |
| Safety | IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE |
| Source data-sheet | Icecat.biz |
| Surge protection features | Fax,Modem,Network,Telephone |
| Typical backup time at half load | 9 min |
| USB 2.0 ports quantity | 1 |
| Weight | 9900 g |
| Width | 82 mm |
| EAN | 0743172437648 |
| Manufacturer | Eaton |

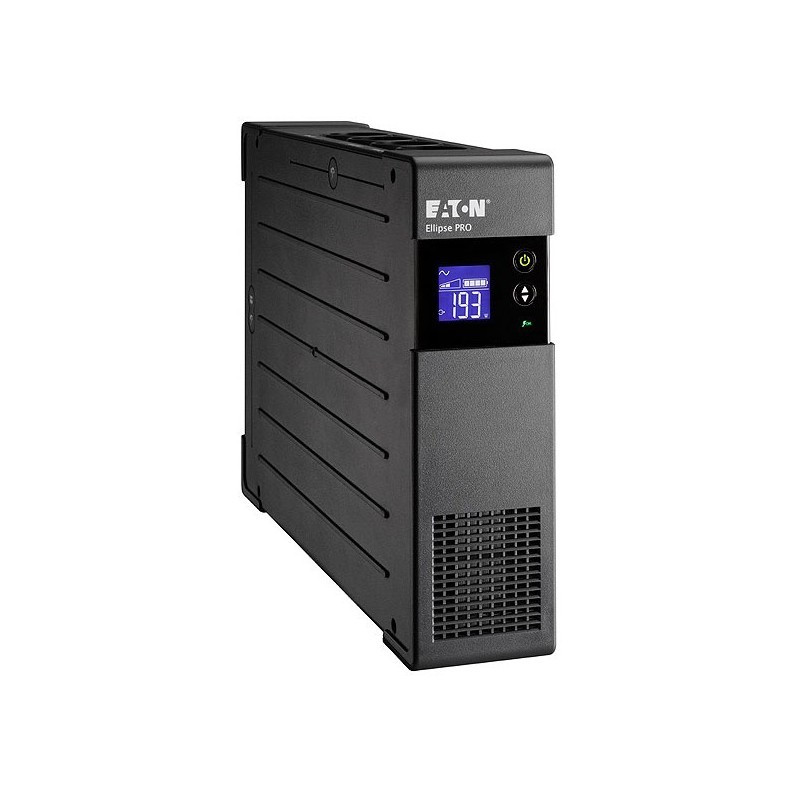

Eaton Ellipse PRO 1200 IEC
**Reduced Price- Tatty Packaging**
Product inside in new condition
Product inside in new condition
