Features
- One DVI video console controls two USB computers
- Fully DVI-Digital specification compliant
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Compact design, built-in all-in-on cables (2 x 1.2 m)
- Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
- Superior video quality - up to 1920 x 1200
- Compatible with widescreen LCD monitors
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
- Supports multimedia keyboards
- Supports wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation**
- HDCP Compliant
- Non-Powered
- Firmware upgradable
* This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
** 1. PC keyboard combinations emulate Mac/Sun keyboards.
** 2. Mac/Sun keyboards work only with their own computers.
Package Contents
- 1x CS682 2-Port USB 2.0 DVI KVM Switch
- 1x Remote Port Selector
- 1x User Instructions
- One DVI video console controls two USB computers
- Fully DVI-Digital specification compliant
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing*
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support - Windows, Linux, Mac and Sun
- Compact design, built-in all-in-on cables (2 x 1.2 m)
- Independent switching of the KVM and Audio focus - one computer can have the KVM focus while the other has the audio focus
- Superior video quality - up to 1920 x 1200
- Compatible with widescreen LCD monitors
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if either of the computers is powered off, the CS682 will automatically switch to the other computer
- Supports multimedia keyboards
- Supports wireless keyboards and mice
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Mac/Sun keyboard support and emulation**
- HDCP Compliant
- Non-Powered
- Firmware upgradable
* This may require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.
** 1. PC keyboard combinations emulate Mac/Sun keyboards.
** 2. Mac/Sun keyboards work only with their own computers.
Package Contents
- 1x CS682 2-Port USB 2.0 DVI KVM Switch
- 1x Remote Port Selector
- 1x User Instructions
| Built-in display | No |
| Cable length | 1.8 m |
| Colour of product | Black |
| Connectivity technology | Wired |
| Depth | 111 mm |
| Dimensions (WxDxH) | 78 x 111 x 25 mm |
| Headphone outputs | 2 |
| Height | 990mm |
| I/O ports | 4 x USB Type A M 2 x DVI-D M 4 x Mini Stereo Jack F |
| Keyboard port type | USB |
| Maximum resolution | 1920 x 1200 pixels |
| Mouse port type | USB |
| Number of computers controlled | 2 |
| Operating temperature (T-T) | 8 - 35 °C |
| Operating temperature range (T-T) | 0 - 50 °C |
| Ports quantity | 2 |
| Power consumption (typical) | 3.05 W |
| Power requirements | 5V |
| Source data-sheet | Icecat.biz |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage temperature range (T-T) | -20 - 60 °C |
| Video port type | DVI-D |
| Weight | VFD and cable: 36.6 lb; Pole (each): 50.7 oz; Base: 66.1 lb (VFD and cable: 1.29 lb; Pole (each): 1.79 oz; Base: 2.33 lb) |
| Width | 78 mm |
Specific References
- EAN13
- 4710423775909

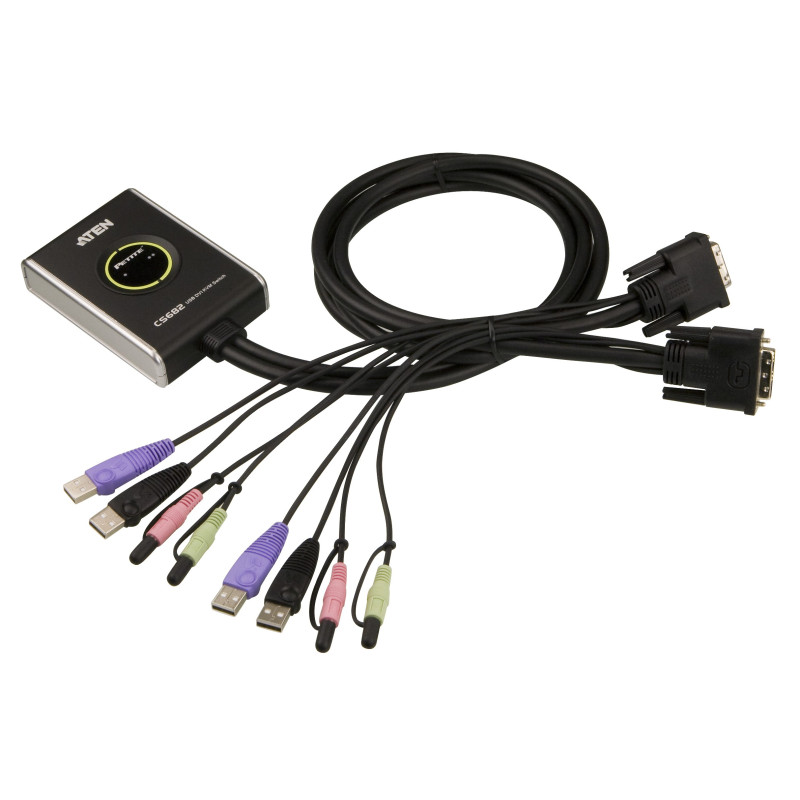

Aten CS682
2-Port USB DVI KVM Switch with Audio
£98.08
£81.73 Ex. VAT
