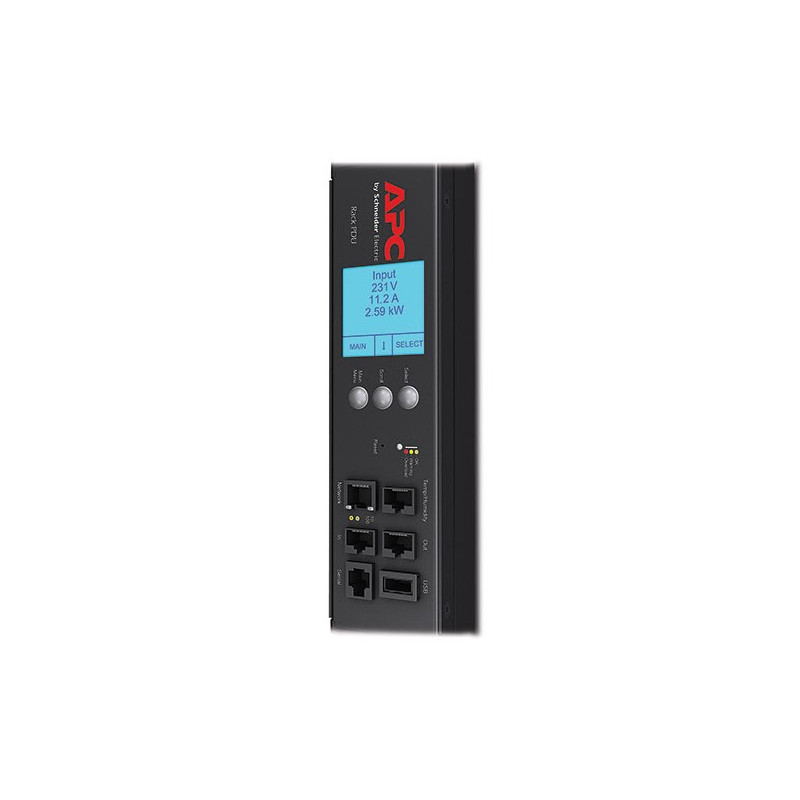

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
| AC outlets quantity | 24 AC outlet(s) |
| Cable length | 3 m |
| Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI Class A, VDE |
| Colour of product | Black |
| Dimensions (WxDxH) | 56 x 51 x 1829 mm |
| Maximum input current per phase | 63 A |
| Maximum total current draw per phase | 400 A |
| Nominal input voltage | 83 - 159 VAC |
| Nominal output voltage | 400V |
| Non-operating altitude | 9144 m |
| Operating altitude | 914.4 - 2133 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating relative humidity range | 5 - 95 % |
| Operating temperature (T-T) | 8 - 35 °C |
| Operating temperature range (T-T) | -5 - 45 °C |
| Package dimensions (WxDxH) | 162 x 117 x 2038 mm |
| Package weight | 9050 g |
| Rack mounting | 0U |
| RoHS compliance | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage relative humidity range | 5 - 95 % |
| Storage temperature (T-T) | 8 - 85 °C |
| Storage temperature range (T-T) | -25 - 65 °C |
| Weight | 6770 g |
Specific References
- EAN13
- 0731304299516
APC AP8659EU3
Rack PDU 2G, Metered, ZeroU, 16A, 230V, (21) C13 & (3) C19
£1,746.98
£1,455.82 Ex. VAT
