ZyXEL NWA1123 AC HD
  • ZyXEL NWA1123 AC HD
  • ZyXEL NWA1123 AC HD
  • ZyXEL NWA1123 AC HD
  • ZyXEL NWA1123 AC HD
  • ZyXEL NWA1123 AC HD
  • ZyXEL NWA1123 AC HD
  • ZyXEL NWA1123 AC HD

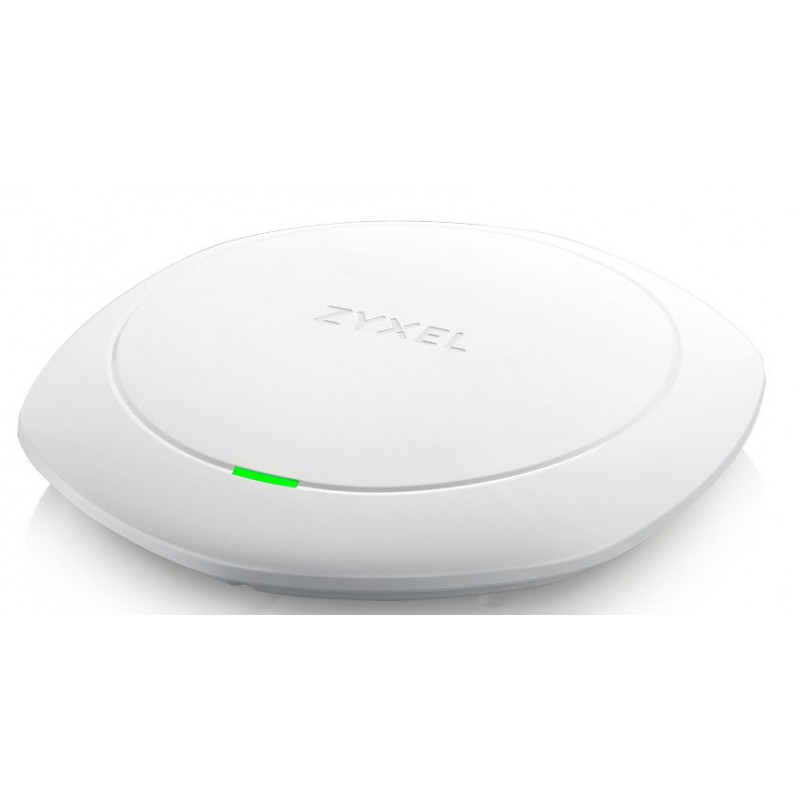

The Zyxel NWA1123-AC HD is a Wave 2 dual-radio 3x3 MU-MIMO standalone Access Point with a combined data rate of up to 1.6Gbps. Thanks to its superior hardware design with next generation beamforming technology and advanced noise suppression, the NWA1123-AC HD delivers increased coverage and improved connection speeds for every client. The high-performance NWA1123-AC HD provides fast, reliable wireless experience that makes itself a favorable, cost-effective solution for high-density Wi-Fi deployments.



MU-MIMO, New Definition of Wi-Fi

Stepping up from 802.11ac, the second generation Wave 2 technology introduces Multi-User MIMO (MU-MIMO). This is an important WiFi development that enables an AP to communicate with multiple clients at a time offering 300% performance for a 3x3 AP.



Generation-2 Transmit Beamforming benefits overall networking

Transmit Beamforming (TxBF) technology is another key to implement reliable high-density Wi-Fi connection. It increases overall network transmission data rates, which benefits not only MU-MIMO clients but also all existing clients.



Built for Superior performance

The NWA1123-AC HD is built with a high-efficiency antenna module, premium power amplifiers and low-noise elements delivering superior wireless performance over other Wave 2 access points on the market.



Optimized wireless experience with advanced features

To provide outstanding performance in crowded environment, NWA1123-AC HD features 3G/4G interference immunity, excellent receive sensitivity and DCS, which enlarge its service coverage for more clients and better quality of connection.
AC adapter includedY
Cable lock slotKensington
Colour of productWhite
Data transfer rate (max)1300 Mbit/s
DC-in jackY
Depth223 mm
DHCP clientY
Ethernet LAN (RJ-45) ports2
Ethernet LAN data rates10,100,1000 Mbit/s
Height39 mm
Input frequency50/60 Hz
Input voltage100 - 240 V
InternalN
Modulation16-QAM,64-QAM,256-QAM,BPSK,CCK,DBPSK,DBQSK,QPSK
Networking standardsIEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)-20 - 50 °C
Output voltage12 V
Package height56 mm
Package weight1090 g
Package width266 mm
Power over Ethernet (PoE)Yes
Quality of Service (QoS) supportY
Security algorithms802.1x RADIUS,EAP,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA2-PSK
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-20 - 70 °C
Throughput1600 Mbps
Weight750 g
Width211 mm

Similar products

  • ZyXEL WAC6103D-I
    ZyXEL WAC6103D-I
  • ZyXEL WAC5302D-S
    ZyXEL WAC5302D-S
  • ZyXEL Wireless N300
    ZyXEL Wireless N300
  • ZyXEL NWA1123-AC PRO
    ZyXEL NWA1123-AC PRO
  • ZyXEL WAC6553D-E
    ZyXEL WAC6553D-E

ZyXEL NWA1123 AC HD

NWA1123-AC HD - 802.11ac Wave2 Dual-Radio Standalone Access Point

NWA1123-ACHD-EU0101F

Out of Stock

£248.63
£207.19 Ex VAT.

Collect monkey points, exchange for Amazon vouchers
Require project pricing? - request a quoteNeed a trade account? - send us your details Are you a public sector organistion? - open a credit account
