Available in sizes from 6U to 21U.

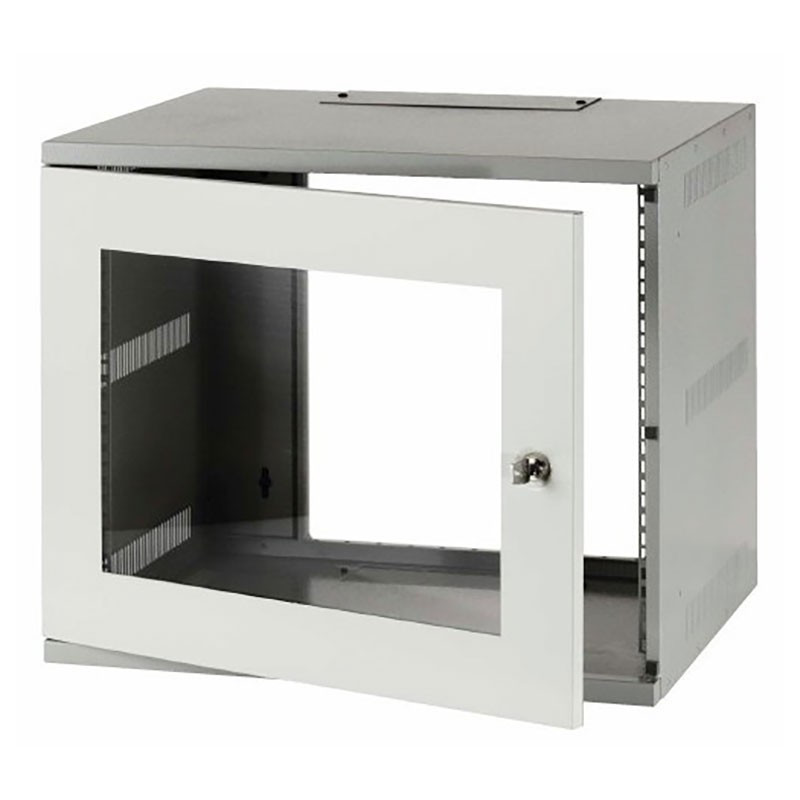

The Lightweight Wall Mountied Cabinets feature fixed profiles and a large cutout panel at the rear.
The cabinet is finished in goose grey with a lockable ash grey perspex inset door.
CCS 19” Wall Mounted Frames are an ideal solution when installation space is at a premium.
The steel framework provides sufficient durability for environments such as risers or shafts. The design allows maximum access to the internal equipment through the top, base and back entrances.
Features:
- Manufactured in the UK
- Supplied Fully assembled
- Cable Access Top and Bottom fitted with blanking plates
- Ideal for installation sites where space is limited such as risers and shafts
- Standard finish goose grey (other colours on request)
- Easy access to internal equipment
- Profiles set 75mm Back form Front door
- 6u also available in Black Click Here
Dimensions By U Height
| U Height | Size (HxWxD) |
| 6U | 313x515x470 mm |
| 9U | 446x515x470 mm |
| 12U | 579x515x470 mm |
| Cable Entry | Top & Bottom |
| Colours | Grey |
| Construction | Welded |
| Depth | 450mm |
| Front Door Type | Perspex Lockable/Removable |
| Internal Working Depth | 390mm |
| Mounting Profiles | 19" Fixed Front Only |
| Side Panels | Solid |
| Weight | 14kg |
| Width | 515mm |
Philip K -
2020-01-27 15:04:16
We always prefer pre-built cabinets and this one was a quality product. Purchased before and will do so again
CCS 470mm Deep Wall Mount Data Cabinets
470mm Data Cabinets with Perspex Front Door
£151.80
£126.50 Ex. VAT
