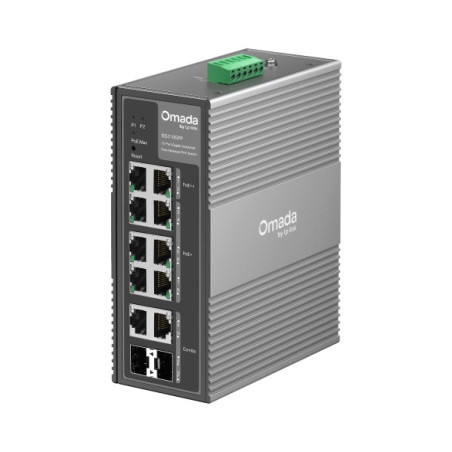

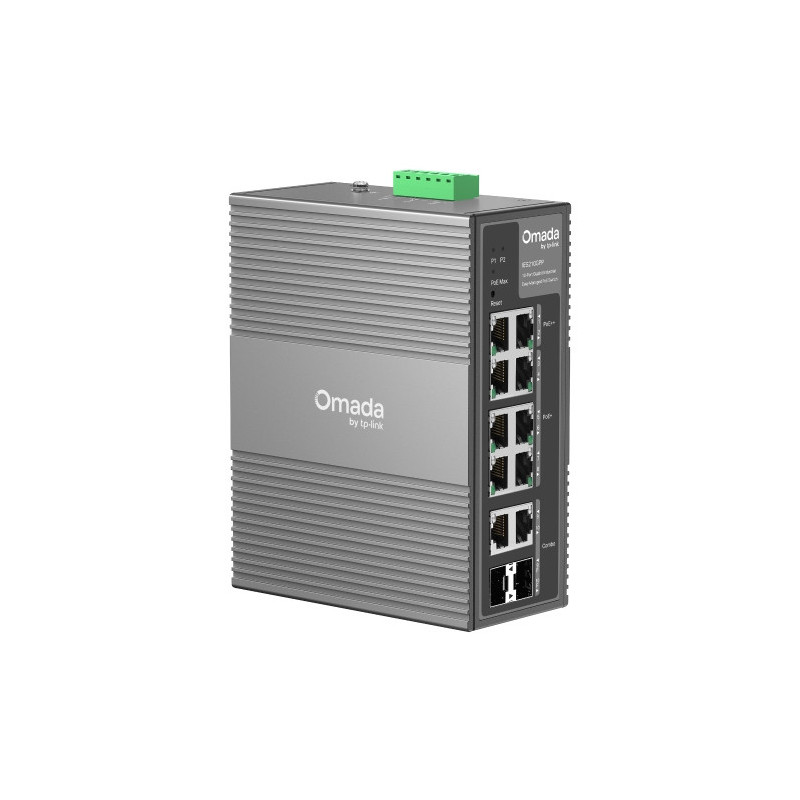

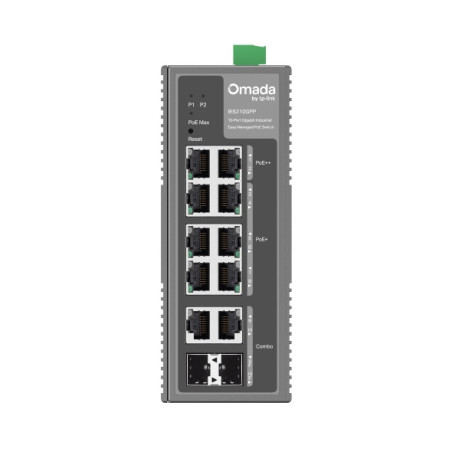

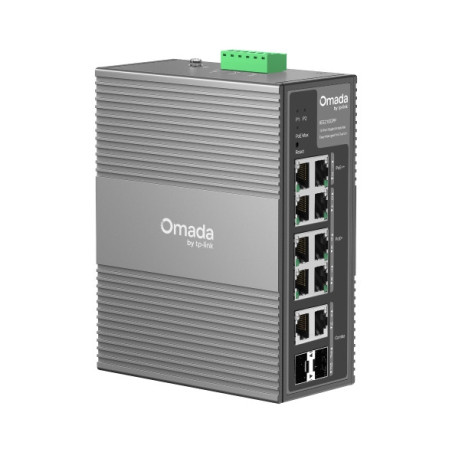

Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch
Industrial-Grade Protection Built for Harsh Environments
- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature

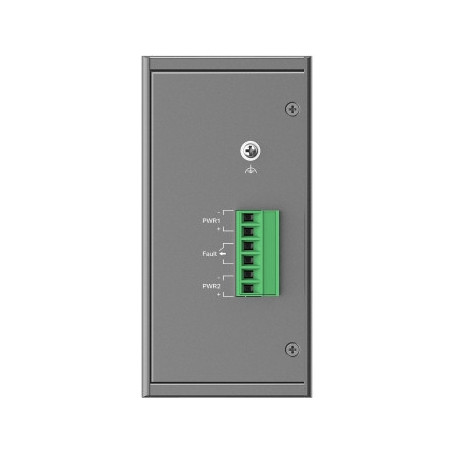

- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting
- 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
- 65W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app
- Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
Technical Headlines
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s
- DIN rail Rack mounting
- DC Power over Ethernet (PoE)
Omada Industrial 10-Port
Gigabit Easy Managed
PoE++ Switch
Industrial-Grade Protection Built for Harsh Environments
- 10× Gigabit Ports (2× PoE++, 6× PoE+, 2× RJ45/SFP Combo)
- 240W Total PoE Budget
- 40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralised Management
- DIN-Rail & Wall Mounting
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Depth | 120 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Form factor | DIN rail |
| Height | 60 mm |
| LED indicators | Yes |
| MAC address table | 8000 entries |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Number of VLANs | 4000 |
| Packet buffer memory | 4000 MB |
| Power over Ethernet (PoE) | Yes |
| Power source | DC |
| Quality of Service (QoS) support | Yes |
| Rack mounting | Yes |
| Source data-sheet | Icecat.biz |
| Store-and-forward | Yes |
| Switch type | Managed |
| Switching capacity | 20 Gbit/s |
| Web-based management | Yes |
| Width | 155 mm |
| Cloud-managed | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
Specific References
- EAN13
- 1210002602129
TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
TP-Link Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++, Managed, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, DIN rail
£205.10
£170.91 Ex. VAT
