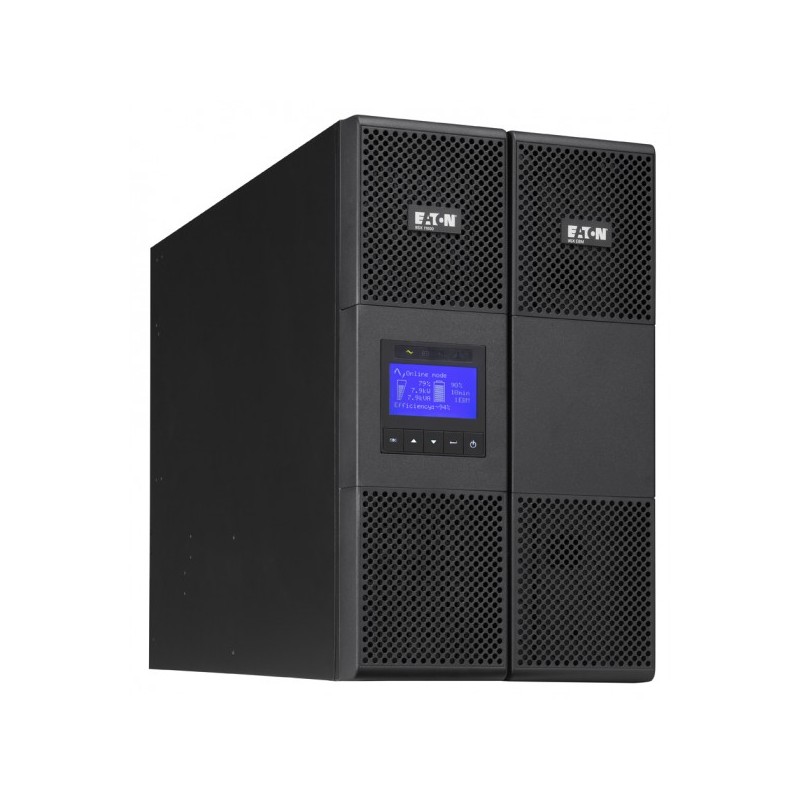

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
| AC outlet types | Terminal |
| Colour of product | Black |
| Crest factor | 3:1 |
| Depth | 700 mm |
| Display | LCD |
| Efficiency | 98 % |
| Energy Star certified | Yes |
| Form factor | Rackmount/Tower |
| Height | 440 mm |
| Input current THD | 5 % |
| Input operation voltage (max) | 276 V |
| Maximum current | 150 A |
| Noise level | 50 dB |
| Operating temperature range (T-T) | 0 - 40 °C |
| Output operation voltage (max) | 250 V |
| Output power | 10000 W |
| Output power capacity (VA) | 11000 VA |
| Power plug | Terminal |
| Power supply input frequency | 40/70 Hz |
| Rack mounting | 6U |
| Safety | EN 62040-1, UL 1778, CSA 22.2 |
| Typical backup time at half load | 9 min |
| Weight | 86 kg |
| Width | 260 mm |
Similar products
-
Eaton 9SX 5000i RT3U
-
Eaton Ellipse ECO 500 IEC
-
Eaton Ellipse PRO 650 IEC
-
Eaton 9SX 6000i RT3U
-
Eaton Ellipse ECO 650 USB IEC
Eaton 9SX11Ki
11 kVA, 10 kW, LCD, Terminal, USB, RS-232, 50 dB, 86 kg
9SX11KI
Out of Stock
£6,015.25
£5,012.71 Ex VAT.
