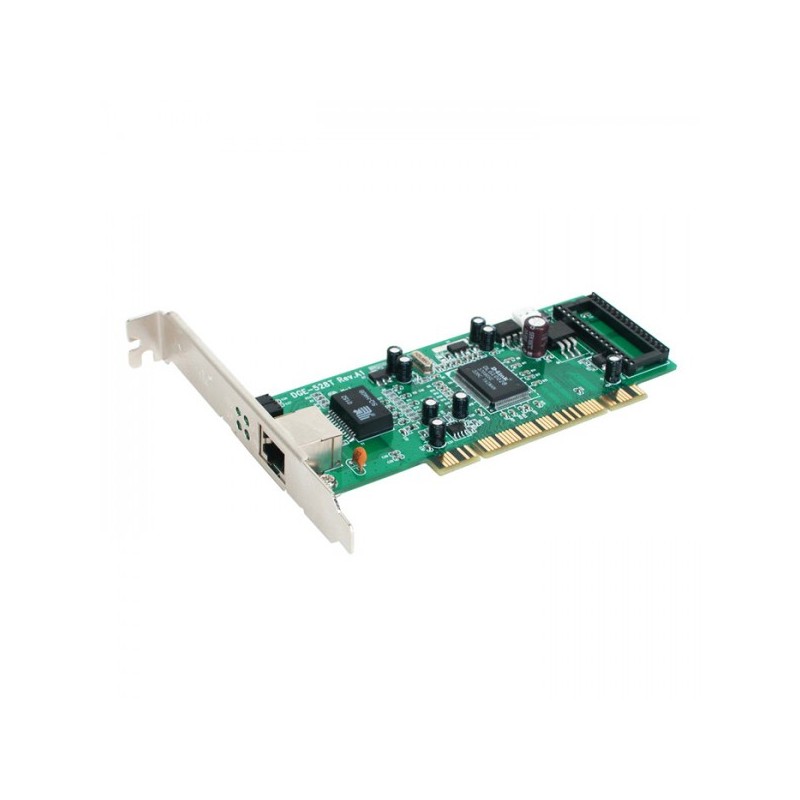

The D-Link DGE-528T is a high-performance 10/100/1000Mbps copper Gigabit PCI card for desktop PC. Installable in a PC equipped with PCI expansion slots, this card turns a desktop computer into a high-bandwidth Gigabit workstation or a server running at 2000Mbps full-duplex speed..



High-performance Gigabit Speed

Capable of running at full-duplex Gigabit speed, this card gives your PC 2000Mbps data transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, the card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation.



VLAN to Improve Performance and Security

The card provides on-board screening of VLANs Tagged Ethernet frames, allowing your PC to be configured with VLAN-supported switch. Your PC can be part of a VLAN network, where domains are segmented up to enhance performance and security.



Wake-On-LAN for Power Management

Wake-On-LAN (WOL) is an Advanced Configuration Power Interface (ACPI) function allowing a powered OFF computer to be powered ON from a remote station. This function allows the administrator to send wake-up signals to a computer. The WOL function provides a great utility for power management of the PC and allows users to initiate action at irregular times and from distant locations.



Flow Control to Minimize Packet Loss

The card's embedded flow control and independent FIFO provide a means to protect against possible data loss during transmission on the network. When connected to a Gigabit switch supporting flow control, the card receives signals from the switch regarding buffer overrun during peak usage periods. The card then delays transmission until the switch is ready again to accept new data.



Small Form Factor, Lower Power Requirement

Using a single chip solution, this card is very small in size and consumes very little power of your computer system.
Cabling technology10/100/1000BaseT(X)
CertificationFCC Class B, CE, ICES-003
Colour of productGreen
Compatible operating systemsMicrosoft Windows 98, NT 4.0, ME, 2000, XP Novell NetWare Server 5.x, 6.x Linux kernel 2.2.x, 2.4.x Macintosh OS X
Compliance industry standards802.1Q, 802.3x
Connectivity technologyWired
Data link protocolsCSMA/CD
Data transfer rate (max)2000 Mbit/s
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexYes
Host interfacePCI
InterfaceEthernet
InternalYes
LED indicatorsYes
Linux operating systems supportedYes
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.2 Jaguar,Mac OS X 10.3 Panther,Mac OS X 10.4 Tiger
Networking standardsIEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x
Operating relative humidity (H-H)5 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)0 - 50 °C
Operating temperature range (T-T)0 - 50 °C
Plug and PlayYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-25 - 55 °C
Windows operating systems supportedWindows 2000,Windows 2000 Professional,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 98,
EAN8714603001198
ManufacturerD-Link

D-Link DGE-528T

£12.92 Inc VAT.

£10.77

In Stock

DGE-528T - PCI, Gigabit Ethernet, CSMA/CD More details
