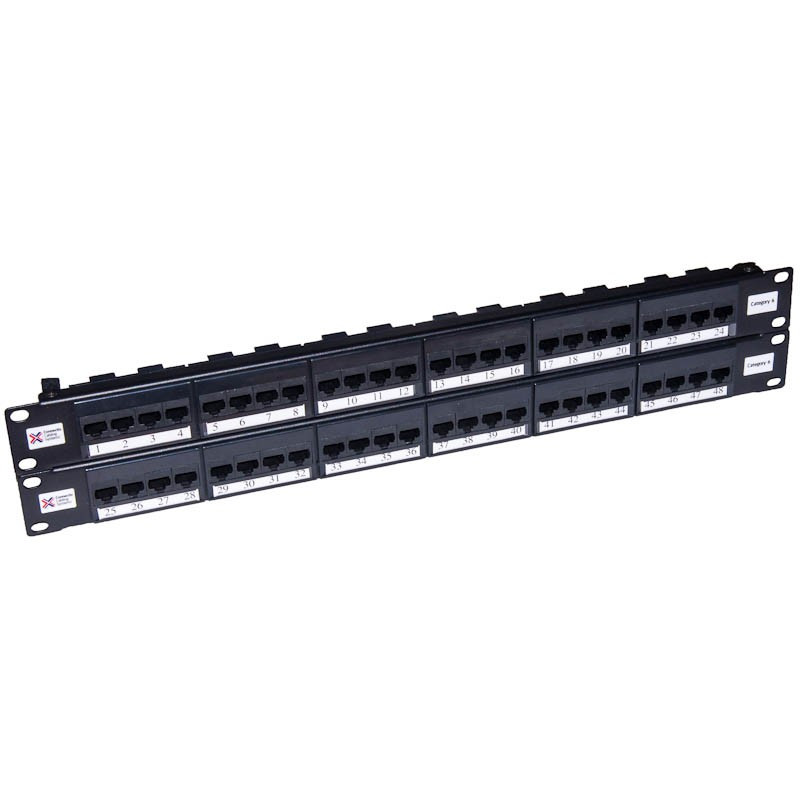

48 Port Cat6 UTP CCS Elite Patch Panel
  • 48 Port Cat6 UTP CCS Elite Patch Panel
  • 48 Port Cat6 UTP CCS Elite Patch Panel

Category 6 high density patch panels provide the performance needed for present and next generation data communications networks and applications, including Gigabit Ethernet. The high density format is ideal where cabinet space is at a premium.

Available in a 2u 48 port format, these Category 6 high density panels achieve optimum transmission performance by incorporating the highest quality components and innovative on-board compensation techniques. The front of the panel features write-on designation labels for each port as well as individual outlet numbering.

The rear of the panel has an easy to follow colour code for each numbered cable position and two cable tie positions are provided for each 6 way block. An optional rear cable management bar is available if required. All Connectix Category 6 high density panels are fully compliant with the TIA/EIA Category 6 standard. When used in conjunction with Category 6 modules and UTP cable the user will get a link performance exceeding Category 6 requirements

Details:

Features:

  • Category 6 performance
  • Adaptable port designation
  • Simple colour coded termination
  • Numbered cable position
  • Top quality high performance sockets
  • Individually QA tested



Specifcations:

  • Width - 19” (483mm)
  • Depth - 34mm
  • Height - 2u (88mm)
  • Fixing Centres - 467mm
  • Material - Mild Steel Sheet CR4 to BSEN10130-1999 DC01 Plastic Inserts ABS Thermoplastic resin with grade UL94 V0 at 1.5mm flame retardancy
  • Finish - Black powder coat to BS6496
  • Socket Labels - 9 x 89mm (6 way blocks)
  • IDC Colour Code - IDC colour code to T568B
  • Cable Guide - Two cable tie positions per 6 way block. Optional Cable Management Bar available
  • Sockets - High performance unshielded vertical jacks
  • IDC Blocks - Industry standard IDC blocks
  • PCB - Groups of 6 identical circuits on 1.6mm double sided PTH board
  • Conforms to - TIA-568-C.2 Category 6 specification
Ports quantity48 Port
ShieldedNo
SpecificationCat6
TerminationIDC Punchdown
U Height2u
