APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Includes: Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity42 AC outlet(s)
Cable length1.83 m
CertificationEN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE REACH: No SVHCs
Colour of productBlack
Dimensions (WxDxH)56 x 51 x 1829 mm
Input frequency50/60 Hz
LED indicatorsYes
Maximum current32 A
Maximum input current per phase32 A
Nominal input voltage400 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95 %
Operating relative humidity range5 - 95 %
Operating temperature (T-T)0 - 55 °C
Operating temperature range (T-T)0 - 55 °C
Output connections30 x IEC 320 C13 12 x IEC 320 C19
Package dimensions (WxDxH)170 x 112 x 2050 mm
Package weight11550 g
PDU typesMetered
Power protection featuresOverload
Rack mounting0U
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)5 - 95 %
Storage relative humidity range5 - 95 %
Storage temperature (T-T)-25 - 65 °C
Storage temperature range (T-T)-25 - 65 °C
Weight8720 g
EAN0731304289937
ManufacturerAPC

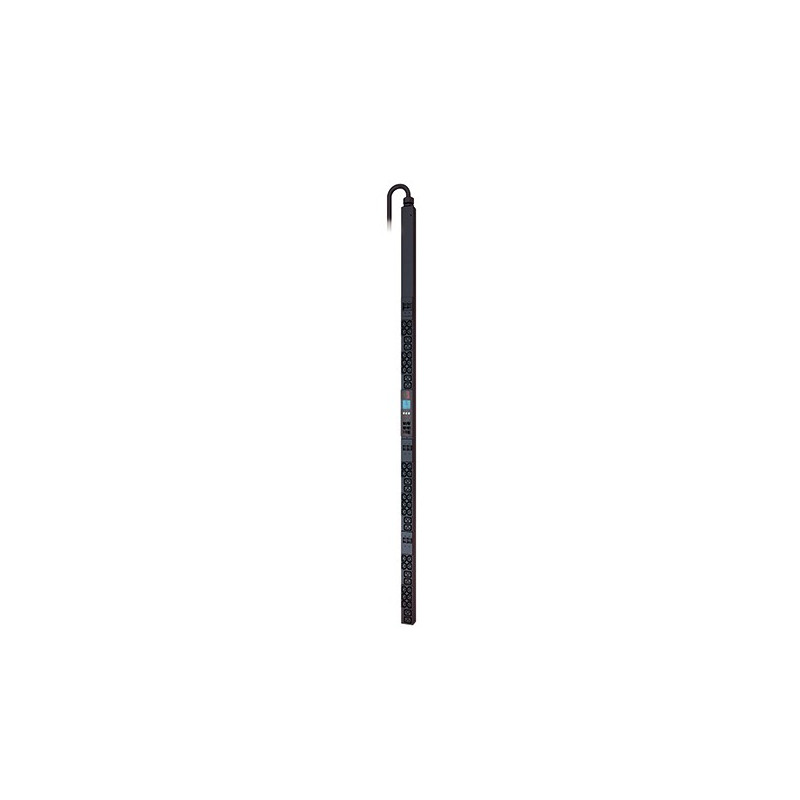

APC AP8886

£1,694.45 Inc VAT.

£1,412.04

In Stock

Rack PDU 2G, Metered, ZeroU, 22.0kW(32A) 17.3kW(24A), 230V, (30) C13 & (12) C19 More details

AP8886

New product
